Electrical data
Nominal wattage |
14.10 W |
Operating mode |
Electronic control gear (ECG) |
Light technical data
Color temperature |
3000 K |
Beam angle |
60 ° |
Luminous flux |
660 lm |
Luminous intensity |
700 cd |
Color rendering index Ra |
80 |
Dimensions & weight
Length |
240.0 mm |
Width |
16.0 mm |
Diameter |
16.0 mm |
Height |
16.0 mm |
Colors & materials
Body material |
Aluminum |
Product color |
Silver |
Cover material |
ABS (Acrylonit, Butadiene, Styrene) |
Reflector material |
Polycarbonate (PC) |
Temperatures
Ambient temperature range |
…+25 °C |
Additional product data
Number of lighting outlets |
9 |
Equipment |
LED |
Equipped with lamp |
Yes |
Reflector type |
Lens |
New article |
NEW |
Capabilities
Type of installation |
Clip |
Adjustable |
Yes |
Dimmable |
No |
Color management (RGB) |
No |
With on/off switch |
Yes |
Type of connection |
Plug transformer |
Accessories |
3x end caps / 3x clip holders / 1 x Y-connector / 1 x switch / 1 x DC adapter / 2 cables |
Certificates & standards
Standards |
CE |
Protection class |
III |
Type of protection |
IP20 |
Protection against ignition and fire |
F, MM |
Country specific categorizations
Order reference |
40000 |
important data at a glance
Starter Kit
Add-on
Connect. linear or Y-shape
Quick and simple installation
Variable installation possibilities
Product features
Designer luminaire system for stylish and fascinating lighting
For ceiling mounting or pendant mounting
Family data sheet
Product family. OSRAM GmbH,
Company Press Career Sustainability
Back to OSRAM homepage
Applications
Products
Tools & Services
Trends & Knowledge
Advanced full-text search
Products – LED Products technology. Front desk lighting
POWERstixx
Zoom in
Zoom out
Resize
Product benefits
Clear modern design
Unique luminaire structures possible when combined with Connector Set
Flexible luminaire forms:
Indoor LED luminaires
Pendant luminaires
POWERstixx
Functional & tasteful
Application: Set
Pendant Kit
Zoom image

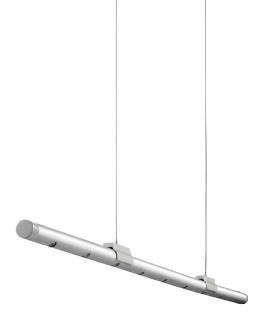

POWERstixx Starter Kit
Product data sheet
Add to notepad
Technical data
Expand
Graphics and application images
Expand
Product line drawing with numbersZoom image
Product line drawing with numbersZoom image
Packaging imageZoom image
Application PicturesZoom image
Application PicturesZoom image
Application PicturesZoom image
Application PicturesZoom image
Application PicturesZoom image
Application PicturesZoom image
Application PicturesZoom image
Packaging information
Expand
Country-specific information
Expand
Print this page
Jump to top
Global OSRAM websites OSRAM in the Social Web
Share Sitemap
Imprint Terms of use Privacy Policy Contact ? 2013: LED Floater Headline
: Kitchen lighting
Friendly & emphatic
Application: All rights reserved
EAN code |
Packaging unit
Pieces per unit |
Dimensions
l x w x h |
Gross weight |
Volume |
4008321962874 |
Blister
1 |
294 mm x 87 mm x 112 mm |
894.06 g |
2.86 dm³ |
4008321962881 |
Shipping carton box
4 |
231 mm x 328 mm x 183 mm |
4084.24 g |
13.87 dm³ |
4008321606402 |
Shipping carton box
16 |
488 mm x 344 mm x 388 mm |
17323.96 g |
65.13 dm³ |
