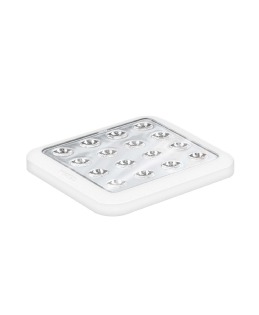

QOD S – Deco & Living – Indoor LED luminaires

QOD S - Deco & Living - Indoor LED luminaires

Electrical data
Nominal wattage 3.50 W
Mains frequency 50…60 Hz
Operating mode Electronic control gear (ECG)
Light technical data
Color temperature 3050 K
Beam angle 45 °
Luminous flux 150 lm
Dimensions & weight
Length 70.0 mm
Width 70.0 mm
Height 8.0 mm
Colors & materials
Body material Plastic
Product color White
Cover material Polycarbonate (PC)
Reflector material Polycarbonate (PC)
Temperatures
Ambient temperature range …+25 °C
Additional product data
Number of lighting outlets 1
Equipment LED
Reflector type Lens
Capabilities
Type of installation Adhesive
Dimmable No
Color management (RGB) No
With on/off switch Yes
Type of connection Plug transformer
Certificates & standards
Standards CE
Protection class insulation class III (safety extra-low voltage)
Type of protection IP20
Protection against ignition and fire F, MM

important data at a glance

Zoom image
QOD S
Product data sheet
Add to notepad
Technical data
Expand
Graphics and application images
Expand
Packaging imageZoom image
Application PicturesZoom image
Application PicturesZoom image
Packaging information
Expand
Country-specific information
Expand
Print this page
Jump to top
Global OSRAM websites OSRAM in the Social Web
Share Sitemap
Imprint Terms of use Privacy Policy Contact ? 2013. adhesive tape or srews
Family data sheet
Product family.
Indoor LED luminaires
Deco & Living
QOD S
QOD S

Zoom in
Zoom out
Resize
Product benefits
Energy saving thanks to LED technology
High brightness thanks to LED technology
Stylish design
Quick and simple installation (Plug & Light)
Areas of application
Accent lighting
Decorative domestic lighting
Energy-saving recessed furniture luminaire
Cupboards
Shelves
Wide spectrum of applications
Walls and panels
Product features
Extremely low profile
Color temperature, OSRAM GmbH: 3:
Company Press Career Sustainability
Back to OSRAM homepage
Applications
Products
Tools & Services
Trends & Knowledge

Advanced full-text search
Products – High Power LED Flood Light technology,000 K (Warm White)
Type of mounting: All rights reserved: LED Floater Headline

EAN code Packaging unit
Pieces per unit		 Dimensions
l x w x h		 Gross weight Volume
4008321971975 Folding carton box
1		 142 mm x 36 mm x 142 mm 264.87 g 0.73 dm³
4008321971982 Shipping carton box
6		 216 mm x 260 mm x 210 mm 2058.00 g 11.79 dm³
4008321971999 Shipping carton box
24		 449 mm x 536 mm x 235 mm 8756.00 g 56.56 dm³
