Electrical data
Nominal wattage |
13.00 W |
Mains frequency |
50 Hz |
Operating mode |
Electronic control gear (ECG) |
Light technical data
Color temperature |
3050 K |
Beam angle |
89 ° |
Luminous flux |
420 lm |
Dimensions & weight
Length |
155.0 mm |
Width |
155.0 mm |
Height |
11.0 mm |
Colors & materials
Body material |
Plastic |
Product color |
White |
Cover material |
Polycarbonate (PC) |
Reflector material |
Polycarbonate (PC) |
Temperatures
Ambient temperature range |
…+25 °C |
Additional product data
Number of lighting outlets |
1 |
Equipment |
LED |
Equipped with lamp |
Yes |
New article |
NEW |
Capabilities
Type of installation |
Screws |
Dimmable |
No |
Color management (RGB) |
No |
With on/off switch |
No |
Type of connection |
Plug transformer |
Certificates & standards
Standards |
CE |
Protection class |
insulation class II (safety insulation) |
Type of protection |
IP20 |
Protection against ignition and fire |
F, MM |
Country specific categorizations
Order reference |
41030 |
OSRAM GmbH.000 K (Warm White)
Type of mounting. All rights reserved,
Indoor LED luminaires
Deco & Living

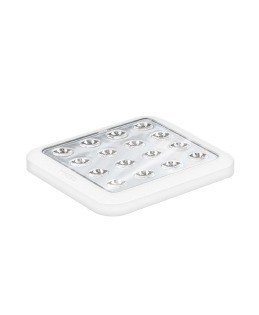

QOD M
QOD M
Zoom in
Zoom out
Resize
Product benefits
Energy saving thanks to LED technology
High brightness thanks to LED technology
Stylish design
Quick and simple installation (Plug & Light)
Areas of application
Accent lighting
Energy-saving recessed furniture luminaire
Wide spectrum of applications
Walls and panels
Corridors
Product features
Extremely low profile
Color temperature: LED Floater Headline
:
Company Press Career Sustainability
Back to OSRAM homepage
Applications
Products
Tools & Services
Trends & Knowledge
Advanced full-text search
Products – High Power LED Flood Light technology, adhesive tape or srews
Family data sheet
Product family: important data at a glance
Zoom image
QOD M
Product data sheet
Add to notepad
Technical data
Expand
Graphics and application images
Expand
Packaging imageZoom image
Application PicturesZoom image
Application PicturesZoom image
Application PicturesZoom image
Application PicturesZoom image
Packaging information
Expand
Country-specific information
Expand
Print this page
Jump to top
Global OSRAM websites OSRAM in the Social Web
Share Sitemap
Imprint Terms of use Privacy Policy Contact ? 2013: 3
EAN code |
Packaging unit
Pieces per unit |
Dimensions
l x w x h |
Gross weight |
Volume |
4008321974921 |
Folding carton box
1 |
282 mm x 49 mm x 282 mm |
667.00 g |
3.90 dm³ |
4008321974938 |
Shipping carton box
4 |
366 mm x 242 mm x 358 mm |
3489.58 g |
31.71 dm³ |
