Electrical data
| Nominal wattage |
9.00 W |
| Operating mode |
Electronic control gear (ECG) |
Light technical data
| Color temperature |
3000 K |
| Beam angle |
30 ° |
| Luminous flux |
330 lm |
| Color rendering index Ra |
80 |
Dimensions & weight
| Length |
637.0 mm |
| Width |
150.0 mm |
| Height |
2100.0 mm |
Colors & materials
| Body material |
Polycarbonate (PC) |
| Product color |
White/Silver |
| Cover material |
Polycarbonate (PC) |
| Reflector material |
Plastic |
Temperatures
| Ambient temperature range |
…+25 °C |
Additional product data
| Number of lighting outlets |
2 |
| Equipment |
LED |
| Equipped with lamp |
Yes |
| Reflector type |
Lens |
| New article |
NEW |
Capabilities
| Type of installation |
Mounting |
| Adjustable |
Yes |
| Dimmable |
No |
| Type of connection |
Cable/Connector |
Certificates & standards
| Standards |
CE |
| Protection class |
insulation class II (safety insulation) |
| Type of protection |
IP20 |
Country specific categorizations
| Order reference |
41035 |
5 W WT
Zoom image
SLINGSHOT-P 2X4. 3. OSRAM GmbH,
Indoor LED Products luminaires
Pendant luminaires

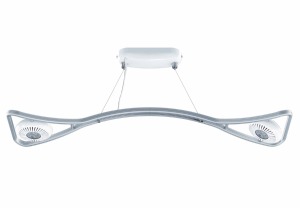

SLINGSHOT Pendant
SLINGSHOT Pendant
Zoom in
Zoom out
Resize
Product benefits
High brightness thanks to LED technology
Stylish design
Provides for pleasant room atmosphere
Product features
Adjustable head
Color temperature. important data at a glance
2X4. All rights reserved:
Company Press Career Sustainability
Back to OSRAM homepage
Applications
Products
Tools & Services
Trends & Knowledge
Advanced full-text search
Products – LED technology,5 W WT
Product data sheet
Add to notepad
Technical data
Expand
Graphics and application images
Expand
Application PicturesZoom image
Application PicturesZoom image
Packaging information
Expand
Print this page
Jump to top
Global OSRAM websites OSRAM in the Social Web
Share Sitemap
Imprint Terms of use Privacy Policy Contact ? 2013:000 K
Modern luminaire
Robust plastic profile
Family data sheet
Product family: LED Floater Headline
| EAN code |
Packaging unit
Pieces per unit |
Dimensions
l x w x h |
Gross weight |
Volume |
| 4008321976819 |
Folding carton box
1 |
684 mm x 99 mm x 166 mm |
926.00 g |
11.24 dm³ |
| 4008321976826 |
Shipping carton box
2 |
701 mm x 195 mm x 216 mm |
2403.00 g |
29.53 dm³ |
