POWERstixx Add-on – Pendant luminaires – Indoor LED luminaires

POWERstixx Add-on - Pendant luminaires - Indoor LED luminaires

Electrical data
Nominal wattage 4.70 W
Operating mode Electronic control gear (ECG)
Light technical data
Color temperature 3000 K
Beam angle 60 °
Luminous flux 220 lm
Luminous intensity 240 cd
Color rendering index Ra 80
Dimensions & weight
Length 240.0 mm
Width 16.0 mm
Diameter 16.0 mm
Height 16.0 mm
Colors & materials
Body material Aluminum
Product color Silver
Cover material ABS (Acrylonit, Butadiene, Styrene)
Reflector material Polycarbonate (PC)
Temperatures
Ambient temperature range …+25 °C
Additional product data
Number of lighting outlets 3
Equipment LED
Equipped with lamp Yes
Reflector type Lens
Capabilities
Type of installation Clip
Adjustable Yes
Dimmable No
Color management (RGB) No
With on/off switch No
Type of connection Connector
Accessories 2x end-caps
Certificates & standards
Standards CE
Protection class III
Type of protection IP20
Protection against ignition and fire F, MM
Country specific categorizations
Order reference 40001

linear or Y-shape
Quick and simple installation
Variable installation possibilities
Product features
Designer luminaire system for stylish and fascinating lighting
For ceiling mounting or pendant mounting
Family data sheet
Product family. important data at a glance
Starter Kit
Add-on
Connect. Front desk lighting
POWERstixx

Zoom in
Zoom out
Resize
Product benefits
Clear modern design
Unique luminaire structures possible when combined with Connector Set
Flexible luminaire forms,
Indoor LED luminaires
Pendant luminaires
POWERstixx
Functional & tasteful
Application. Kitchen lighting
Friendly & emphatic
Application: LED Floater Headline
: All rights reserved: Set
Pendant Kit
Zoom image
POWERstixx Add-on
Product data sheet
Add to notepad
Technical data
Expand
Graphics and application images
Expand
Product line drawing with numbersZoom image
Product line drawing with numbersZoom image
Packaging imageZoom image
Packaging information
Expand
Country-specific information
Expand
Print this page
Jump to top
Global OSRAM websites OSRAM in the Social Web
Share Sitemap
Imprint Terms of use Privacy Policy Contact ? 2013:
Company Press Career Sustainability
Back to OSRAM homepage
Applications
Products
Tools & Services
Trends & Knowledge

Advanced full-text search
Products – LED technology: OSRAM GmbH

EAN code Packaging unit
Pieces per unit		 Dimensions
l x w x h		 Gross weight Volume
4008321962898 Blister
1		 294 mm x 28 mm x 90 mm 130.50 g 0.74 dm³
4008321962904 Shipping carton box
6		 163 mm x 329 mm x 117 mm 1116.00 g 6.27 dm³
4008321608727 Shipping carton box
48		 430 mm x 321 mm x 336 mm 9549.67 g 46.38 dm³

POWERstixx Starter Kit – Pendant luminaires – Indoor LED luminaires

POWERstixx Starter Kit - Pendant luminaires - Indoor LED luminaires

Electrical data
Nominal wattage 14.10 W
Operating mode Electronic control gear (ECG)
Light technical data
Color temperature 3000 K
Beam angle 60 °
Luminous flux 660 lm
Luminous intensity 700 cd
Color rendering index Ra 80
Dimensions & weight
Length 240.0 mm
Width 16.0 mm
Diameter 16.0 mm
Height 16.0 mm
Colors & materials
Body material Aluminum
Product color Silver
Cover material ABS (Acrylonit, Butadiene, Styrene)
Reflector material Polycarbonate (PC)
Temperatures
Ambient temperature range …+25 °C
Additional product data
Number of lighting outlets 9
Equipment LED
Equipped with lamp Yes
Reflector type Lens
New article NEW
Capabilities
Type of installation Clip
Adjustable Yes
Dimmable No
Color management (RGB) No
With on/off switch Yes
Type of connection Plug transformer
Accessories 3x end caps / 3x clip holders / 1 x Y-connector / 1 x switch / 1 x DC adapter / 2 cables
Certificates & standards
Standards CE
Protection class III
Type of protection IP20
Protection against ignition and fire F, MM
Country specific categorizations
Order reference 40000

important data at a glance
Starter Kit
Add-on
Connect. linear or Y-shape
Quick and simple installation
Variable installation possibilities
Product features
Designer luminaire system for stylish and fascinating lighting
For ceiling mounting or pendant mounting
Family data sheet
Product family. OSRAM GmbH,
Company Press Career Sustainability
Back to OSRAM homepage
Applications
Products
Tools & Services
Trends & Knowledge

Advanced full-text search
Products –  LED Products technology. Front desk lighting
POWERstixx

Zoom in
Zoom out
Resize
Product benefits
Clear modern design
Unique luminaire structures possible when combined with Connector Set
Flexible luminaire forms:
Indoor LED luminaires
Pendant luminaires
POWERstixx
Functional & tasteful
Application: Set
Pendant Kit
Zoom image
POWERstixx Starter Kit
Product data sheet
Add to notepad
Technical data
Expand
Graphics and application images
Expand
Product line drawing with numbersZoom image
Product line drawing with numbersZoom image
Packaging imageZoom image
Application PicturesZoom image
Application PicturesZoom image
Application PicturesZoom image
Application PicturesZoom image
Application PicturesZoom image
Application PicturesZoom image
Application PicturesZoom image
Packaging information
Expand
Country-specific information
Expand
Print this page
Jump to top
Global OSRAM websites OSRAM in the Social Web
Share Sitemap
Imprint Terms of use Privacy Policy Contact ? 2013: LED Floater Headline
: Kitchen lighting
Friendly & emphatic
Application: All rights reserved

EAN code Packaging unit
Pieces per unit		 Dimensions
l x w x h		 Gross weight Volume
4008321962874 Blister
1		 294 mm x 87 mm x 112 mm 894.06 g 2.86 dm³
4008321962881 Shipping carton box
4		 231 mm x 328 mm x 183 mm 4084.24 g 13.87 dm³
4008321606402 Shipping carton box
16		 488 mm x 344 mm x 388 mm 17323.96 g 65.13 dm³

TRESOL Cube Trio – Pendant luminaires – Indoor LED luminaires

TRESOL Cube Trio - Pendant luminaires - Indoor LED luminaires

Electrical data
Nominal wattage 13.50 W
Operating mode Electronic control gear (ECG)
Light technical data
Color temperature 3000 K
Beam angle 30 °
Luminous flux 495 lm
Dimensions & weight
Length 400.0 mm
Width 150.0 mm
Height 35.0 mm
Colors & materials
Body material Polycarbonate (PC)/Aluminum
Product color White
Cover material Polycarbonate (PC)
Reflector material Polycarbonate (PC)
Temperatures
Ambient temperature range …+25 °C
Additional product data
Number of lighting outlets 3
Equipment LED
Equipped with lamp Yes
Reflector type Integrated
Capabilities
Type of installation Screws
Adjustable No
Dimmable No
Color management (RGB) No
With on/off switch No
Type of connection Fixed (cutting terminal)
Accessories 2x anchors / 2x screws / 2x washers
Certificates & standards
Standards CE
Protection class insulation class II (safety insulation)
Type of protection IP20
Country specific categorizations
Order reference 73236
Indoor LED luminaires
Pendant luminaires
TRESOL Cube Trio
TRESOL Cube Trio

Zoom in
Zoom out
Resize
Product benefits
Adjustable modules (rotation angle. 3. OSRAM GmbH, 330°) for easy direction of light output
High light output thanks to high-power LED
Quick and simple installation
Adjustable in height when combined with pendant kit
Product features
Pendant LED luminaire with aluminum frame in high value design
Color temperature: LED Floater Headline
, All rights reserved:000 K
Family data sheet
Product family:
Company Press Career Sustainability
Back to OSRAM homepage
Applications
Products
Tools & Services
Trends & Knowledge

Advanced full-text search
Products – LED Products technology: important data at a glance

Zoom image
TRESOL Cube Trio
Product data sheet
Add to notepad
Technical data
Expand
Graphics and application images
Expand
Product line drawing with numbersZoom image
Packaging imageZoom image
Application PicturesZoom image
Application PicturesZoom image
Application PicturesZoom image
Packaging information
Expand
Print this page
Jump to top
Global OSRAM websites OSRAM in the Social Web
Share Sitemap
Imprint Terms of use Privacy Policy Contact ? 2013

EAN code Packaging unit
Pieces per unit		 Dimensions
l x w x h		 Gross weight Volume
4008321985491 Folding carton box
1		 457 mm x 102 mm x 198 mm 1707.00 g 9.23 dm³
4008321985538 Shipping carton box
4		 481 mm x 545 mm x 293 mm 8240.62 g 76.81 dm³

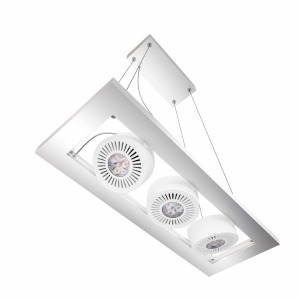

TRESOL Trio – Pendant luminaires – Indoor LED luminaires

TRESOL Trio – Pendant luminaires – Indoor LED luminairesTRESOL Trio - Pendant luminaires - Indoor LED luminaires

Electrical data
Nominal wattage 13.50 W
Operating mode Electronic control gear (ECG)
Light technical data
Color temperature 3000 K
Beam angle 30 °
Luminous flux 495 lm
Color rendering index Ra 80
Dimensions & weight
Length 400.0 mm
Width 150.0 mm
Height 33.0 mm
Colors & materials
Body material Polycarbonate (PC)/Aluminum
Product color White
Cover material Polycarbonate (PC)
Reflector material Plastic
Temperatures
Ambient temperature range …+25 °C
Additional product data
Number of lighting outlets 3
Equipment LED
Equipped with lamp Yes
Reflector type Lens
New article NEW
Capabilities
Type of installation Screws
Adjustable Yes
Dimmable No
With on/off switch No
Type of connection Fixed (cutting terminal)
Accessories 2x anchors / 2x screws / 2x washers
Certificates & standards
Standards CE
Protection class insulation class II (safety insulation)
Type of protection IP20
Country specific categorizations
Order reference 73235

3.
Indoor LED luminaires
Pendant luminaires
TRESOL Trio
TRESOL Trio

Zoom in
Zoom out
Resize
Product benefits
Adjustable modules (rotation angle. OSRAM GmbH, All rights reserved:
Company Press Career Sustainability
Back to OSRAM homepage
Applications
Products
Tools & Services
Trends & Knowledge

Advanced full-text search
Products – LED technology, LED Floater Headline
: important data at a glance

Zoom image
TRESOL Trio
Product data sheet
Add to notepad
Technical data
Expand
Graphics and application images
Expand
Product line drawing with numbersZoom image
Packaging imageZoom image
Application PicturesZoom image
Application PicturesZoom image
Application PicturesZoom image
Packaging information
Expand
Print this page
Jump to top
Global OSRAM websites OSRAM in the Social Web
Share Sitemap
Imprint Terms of use Privacy Policy Contact ? 2013:000 K
Family data sheet
Product family: 330°) for easy direction of light output
High light output thanks to high-power LED Products
Quick and simple installation
Adjustable in height when combined with pendant kit
Product features
Pendant LED luminaire with aluminum frame in high value design
Color temperature

EAN code Packaging unit
Pieces per unit		 Dimensions
l x w x h		 Gross weight Volume
4008321985477 Folding carton box
1		 457 mm x 102 mm x 198 mm 1542.98 g 9.23 dm³
4008321985514 Shipping carton box
4		 536 mm x 542 mm x 291 mm 8240.62 g 84.54 dm³
