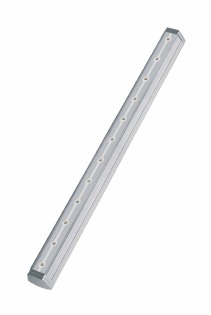

LDV POLYBAR M 827 L80 – Batten luminaires – LED luminaires
Operating mode | Electronic control gear (ECG) |
---|---|
Nominal wattage | 12.00 W |
Lamp wattage | 12 W |
Nominal voltage | 220…240 V |
Mains frequency | 50 Hz/60 Hz |
Nominal current | 0.07 A |
Beam angle | 80 ° |
---|---|
Luminous flux | 700 lm |
Luminous intensity | 350 cd |
Color rendering index Ra | › 80 |
Color rendering group | 1B |
Luminaire efficiency | 0.85 |
Length | 500.0 mm |
---|---|
Width | 40.0 mm |
Height | 26.0 mm |
Mounting hole spacing, length | 415.0 mm |
Body material | Aluminum |
---|---|
Product color | Anodized |
RAL-Number | 9006 |
Cover material | Polycarbonate (PC) |
Ambient temperature range | 0…+45 °C |
---|
Number of lighting outlets | 1 |
---|---|
Equipment | LED OSLON |
Type of installation | Mounting |
---|---|
Application | Furniture lighting |
Adjustable | Yes |
Dimmable | No |
Type of connection | Connector |
Accessories | Power cable 2 m EU (4008321626493) / Power cable 2 m UK (4008321626516) / 250 MM (4008321626530) / 500 MM (4008321626530) / 1000 MM (4008321626530) |
Glow Wire Test according to IEC 695-2-1 | 850 °C |
---|---|
Protection class | II |
Type of protection | IP20 |
Protection against ignition and fire | F, MM |
Indoor LED luminaires
Batten luminaires
LEDVANCE POLYBAR
Comfortable & variable
Application. 500 mm and 750 mm
Average lifespan. Shelf lighting
Accessories
LEDVANCE POLYBAR
LEDVANCE POLYBARZoom in
Zoom out
Resize
Product benefits
Simple connection thanks to integrated connector system
Areas of application
Cove lighting
Shelf/furniture lighting
Workbenches
Product features
Available in 3 different lengths, 50. All rights reserved.000 h
Modular system for flexible configuration
Surface mounting with included brackets or available swivel base (± 20°)
Direct connection to AC power supply
Equipment / Accessories
Equipped with control gear
Equipped with OSLON LED High Bay Lights Reduce text
Product benefits
Simple connection thanks to integrated connector system
Areas of application
Cove lighting
Shelf/furniture lighting
Workbenches
Product features
Available in 3 different lengths. LED Floater Headline
