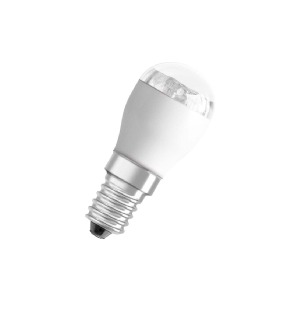

PARATHOM SPECIAL T26 0.8 W/765 E14 – Professional special LED lamps

PARATHOM SPECIAL T26 0.8 W/765 E14 – Professional special LED lampsPARATHOM SPECIAL T26 0.8 W/765 E14

Electrical data
Rated wattage 0.8 W
Nominal wattage 0.8 W
Nominal voltage 220…240 V
Rated power factor λ 0.20
Operating frequency 50…60 Hz
Light technical data
Nominal luminous flux 65 lm
Rated luminous flux 65 lm
Color temperature 6000 K
Color rendering index Ra 70
Starting time 0.1 s
Warm-up time (60 %) 0 s
Lumen main.fact.at end of nom.life time 0.70
Light color as per EN 12464-1 Daylight
Dimensions & weight
Overall length 63.0 mm
Diameter 26.0 mm
Outer bulb T26
Colors & materials
Lamp mercury content 0.0 mg
Mercury-free Yes
Lifespan
Nominal lamp life time 10000 h
Rated lamp life time 10000 h
Number of switching cycles 200000
Additional product data
Base (standard designation) E14
New article NEW
Design / version Clear
Footnote used only for product All technical parameters apply to the entire lamp/Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value/Technical and light values are subject to be changed
Capabilities
Dimmable No
Certificates & standards
EEI – Energy Label A
Country specific categorizations
ILCOS DRNT/C-0,8-220-240-E14-26

8 W/765 E14
Product data sheet
Add to notepad
Technical data
Expand
Graphics and application images
Expand
Downloads
Expand
File Type Size
pdf
Addon Technical Information
PARATHOM Special T26 pdf 55.3 KB
Packaging information
Expand
Country-specific information
Expand
Print this page
Jump to top
Global OSRAM websites OSRAM in the Social Web
Share Sitemap
Imprint Terms of use Privacy Policy Contact ? 2013.,. LED Floater Headline
.8 W/730 E14
Zoom image
PARATHOM SPECIAL T26 0.000 h
Family data sheet
Product family.
Company Press Career Sustainability
Back to OSRAM homepage
Applications
Products
Tools & Services
Trends & Knowledge

Advanced full-text search
Products – LED Down Lights technology: sewing machines
Accent lighting
Outdoor use in outdoor luminaires only (minimum IP65)
Product features
Light Color, E14
LED lamps for line voltage
Mercury-free lamps
Lifetime: Warm White
Not suitable for use with dimmers
Base: OSRAM GmbH, up to 15:8 W/765 E14
0, important data at a glance
0. All rights reserved. Cool White.
Lamps
Professional special LED lamps:
PARATHOM SPECIAL T26
PARATHOM SPECIAL T26

Zoom in
Zoom out
Resize
Product benefits
Very low energy consumption
Long life
Robust against vibrations
Extremely small dimensions
Lower thermal output (compared with the standard reference product)
Areas of application
Refrigerators

EAN code Packaging unit
Pieces per unit		 Dimensions
l x w x h		 Gross weight Volume
4008321965004 Folding carton box
1		 64 mm x 28 mm x 28 mm 14.60 g 0.05 dm³
4008321965011 Shipping carton box
20		 150 mm x 77 mm x 120 mm 360.00 g 1.39 dm³
4008321591227 Shipping carton box
120		 154 mm x 82 mm x 123 mm 404.00 g 1.55 dm³
4008321736161 Shipping carton box
120		 149 mm x 78 mm x 118 mm 359.00 g 1.37 dm³
