Electrical data
| Nominal wattage |
4.70 W |
| Operating mode |
Electronic control gear (ECG) |
Light technical data
| Color temperature |
3000 K |
| Beam angle |
60 ° |
| Luminous flux |
220 lm |
| Luminous intensity |
240 cd |
| Color rendering index Ra |
80 |
Dimensions & weight
| Length |
240.0 mm |
| Width |
16.0 mm |
| Diameter |
16.0 mm |
| Height |
16.0 mm |
Colors & materials
| Body material |
Aluminum |
| Product color |
Silver |
| Cover material |
ABS (Acrylonit, Butadiene, Styrene) |
| Reflector material |
Polycarbonate (PC) |
Temperatures
| Ambient temperature range |
…+25 °C |
Additional product data
| Number of lighting outlets |
3 |
| Equipment |
LED |
| Equipped with lamp |
Yes |
| Reflector type |
Lens |
Capabilities
| Type of installation |
Clip |
| Adjustable |
Yes |
| Dimmable |
No |
| Color management (RGB) |
No |
| With on/off switch |
No |
| Type of connection |
Connector |
| Accessories |
2x end-caps |
Certificates & standards
| Standards |
CE |
| Protection class |
III |
| Type of protection |
IP20 |
| Protection against ignition and fire |
F, MM |
Country specific categorizations
| Order reference |
40001 |
linear or Y-shape
Quick and simple installation
Variable installation possibilities
Product features
Designer luminaire system for stylish and fascinating lighting
For ceiling mounting or pendant mounting
Family data sheet
Product family. important data at a glance
Starter Kit
Add-on
Connect. Front desk lighting
POWERstixx
Zoom in
Zoom out
Resize
Product benefits
Clear modern design
Unique luminaire structures possible when combined with Connector Set
Flexible luminaire forms,
Indoor LED luminaires
Pendant luminaires
POWERstixx
Functional & tasteful
Application. Kitchen lighting
Friendly & emphatic
Application: LED Floater Headline
: All rights reserved: Set
Pendant Kit
Zoom image

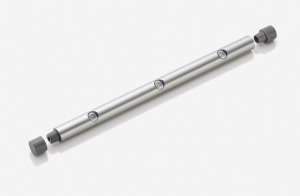

POWERstixx Add-on
Product data sheet
Add to notepad
Technical data
Expand
Graphics and application images
Expand
Product line drawing with numbersZoom image
Product line drawing with numbersZoom image
Packaging imageZoom image
Packaging information
Expand
Country-specific information
Expand
