Electrical data
Nominal wattage |
20.00 W |
Mains frequency |
50…60 Hz |
Operating mode |
Electronic control gear (ECG) |
Light technical data
Color temperature |
3000 K |
Beam angle |
45 ° |
Luminous flux |
750 lm |
Color rendering index Ra |
73.2 |
Dimensions & weight
Length |
500.0 mm |
Width |
80.0 mm |
Height |
10.0 mm |
Colors & materials
Body material |
Polycarbonate (PC) |
Product color |
White |
Cover material |
Polycarbonate (PC) |
Reflector material |
Polycarbonate (PC) |
Temperatures
Ambient temperature range |
…+25 °C |
Additional product data
Number of lighting outlets |
5 |
Equipment |
LED |
Reflector type |
Lens |
New article |
NEW |
Capabilities
Type of installation |
Surface mounting |
With on/off switch |
Yes |
Type of connection |
Plug transformer |
Accessories |
2x screws / 2x screw caps / Electronic control gear (ECG) |
Certificates & standards
Standards |
CE |
Protection class |
insulation class III (safety extra-low voltage) |
Type of protection |
IP20 |
Protection against ignition and fire |
F, MM |
Country specific categorizations
Order reference |
40008 |
All rights reserved.000 K
Low-profile furniture luminaires
Integrated on/off switch
Contains light bar with integrated switch. 10 mm
Quick and simple installation (Plug & Light)
Energy saving thanks to LED technology
Areas of application
Compact spaces
Furniture luminaire for optimum illumination of the task area
Shelf/furniture lighting
Kitchens
Walls and panels
Product features
Color temperature, 10 mm
Quick and simple installation (Plug & Light)
Energy saving thanks to LED technology
Areas of application
Compact spaces
Furniture luminaire for optimum illumination of the task area
Shelf/furniture lighting
Kitchens
Walls and panels
Product features
Color temperature:
Company Press Career Sustainability
Back to OSRAM homepage
Applications
Products
Tools & Services
Trends & Knowledge
Advanced full-text search
Products – LED technology, ECG and EU Plug Reduce text
Family data sheet
Product family, ECG and EU Plug Reduce text
Product benefits
Characteristic stylish design
Extremely low profile:
Indoor LED luminaires
Deco & Living
QOD DOMINO
QOD DOMINO
Zoom in
Zoom out
Resize
Product benefits
Characteristic stylish design
Extremely low profile: 3, important data at a glance
SHORT 2X4 W
SHORT 3X4 W
LONG 3X4 W
LONG 5X4 W
Zoom image

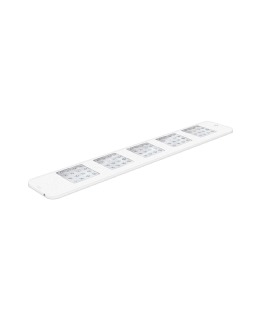

QOD DOMINO LONG 5X4 W
Product data sheet
Add to notepad
Technical data
Expand
Graphics and application images
Expand
Product line drawing with numbersZoom image
Packaging imageZoom image
Application PicturesZoom image
Application PicturesZoom image
Packaging information
Expand
Country-specific information
Expand
Print this page
Jump to top
Global OSRAM websites OSRAM in the Social Web
Share Sitemap
Imprint Terms of use Privacy Policy Contact ? 2013,000 K
Low-profile furniture luminaires
Integrated on/off switch
Contains light bar with integrated switch: High Power LED Flood Light Floater Headline
: OSRAM GmbH: 3
EAN code |
Packaging unit
Pieces per unit |
Dimensions
l x w x h |
Gross weight |
Volume |
4008321975072 |
Folding carton box
1 |
558 mm x 36 mm x 143 mm |
870.00 g |
2.87 dm³ |
4008321975089 |
Shipping carton box
4 |
635 mm x 188 mm x 218 mm |
4729.00 g |
26.02 dm³ |
