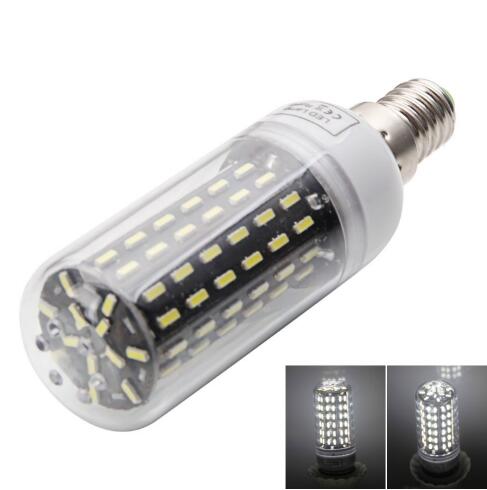

E14 9W 6000-6500K White LED Corn light

E14-9W-6000-6500K-White-LED-Corn-light

E14 9W 6000-6500K White LED Corn light is a high quality corn light with transparent shell and black board. It utilizes 96 SMD4014 LEDs driven at maximum power, producing comfortable, natural yet bright light without RF interference. This bulb is ideal for lighting of residence, offices, workshop, exhibition and other indoor places. With all these great features, it is definitely an excellent replacement choice for ordinary bulbs. Durable plastic cover is tough and dependable.

E14 9W 6000-6500K White LED Corn light Specification:

Dimensions (3.90 x 1.22)” / (9.9 x 3.1)cm (H x Dia.)
Weight 0.99oz / 28g
Color Silver & White
Material Aluminium Alloy & Plastic
Connector Type E14
Voltage AC 220-240V
Model 4014SMD
Power 9W
LED Quantity 96pcs
Color Light White
Color Temperature 6000-6500K

E14 9W 6000-6500K White LED Corn light Features:

  • High quality corn light with transparent shell and black board
  • Utilize 96 SMD4014 LEDs driven at maximum power
  • Produce comfortable, natural yet bright light
  • No radiation or RF interference, safe to use
  • High luminous efficiency, low energy cost
  • Ideal for lighting of residence, offices, workshop, exhibition and other indoor places

TG 7w MR16 LED Bulb 80 CRI

TG 7w MR16 LED Bulb 80 CRI

TG 7w MR16 LED Bulb 80 CRI is an energy efficient choice, as it uses 7W of energy which performs at an equivalent level of a 50W halogen bulb. This MR16 has a form factor of 48mm x 50mm, making it a truly replacement for standard halogen MR16. This model has a color temperature of 3000K and a lumen output of 500 lumens.

TG 7w MR16 LED Bulb 80 CRI Specification:

  • Wattage: 7W
  • Delivery Lumen: 500 Lumen
  • Equivalent Source: 50 Watt Halogen
  • Color Rendering: 80 CRI
  • L70 Lumen Maintenance Lifetime: 25,000 hours
  • Connector: GU5.3
  • Beam Spread (Angle): 38°
  • Operating Temperature: -20°C to +40°C
  • Voltage: 12V AC/DC
  • Power Factor: 0.9
  • CRI: 80
  • CCT: 3000K
  • Base: GU5.3
  • Energy Star Approved

TG 7w MR16 LED Bulb 80 CRI Features:

  • Standard MR 16 form factor of 50mm x 48mm
  • 500 lumens output for true 50W Halogen Replacement
  • Excellent color rendering of 80 CRI
  • Qualified for Energy Star
  • Smooth dimming to 10%
  • Maintenance Free with 25,000 hour lifetime

Outlook of 2017 global LED industry development

First, from the industry analysis of data, the global LED industry growth momentum will remain unchanged. Analysis of institutions from the analysis of the industry chain in the next volume, 2017, the global LED industry will remain high-speed growth, LED enterprise development will usher in further development momentum.

Outlook of 2017 global LED industry development

1, LED chip promising, 2017 will be in short supply

2016 years ago, LED chip manufacturers have expanded their business, resulting in significant excess capacity, prices continued to decline rapidly, making the LED industry drastic changes. However, since 2016, with the steady growth in demand, LED industry supply and demand relations gradually improved last year, there is a product-intensive price increases.

Experts said, LED industry after a deep reshuffle, the supply side of the reform more fully. It is estimated that by the end of 2017, LED chip production capacity of about 83.28 million effective demand, about 92.35 million. Demand for outdoor full-color display 260 million, an increase of 5%; indoor small spacing demand of 1.02 million, an increase of 50%; mobile phone backlight demand of 1.39 million, the same time, Tablet PC backlighting needs of 440,000, computer and TV backlighting needs of 6.99 million, 1.06 million automotive lighting needs.

The industry believes that, LED chip production capacity is still below demand. Taking into account the steady growth in demand in 2017, LED chips will be in a state of short supply.

2, 2017 China LED packaging capacity continues to strengthen

According to DIGITIMES study found that, in view of LED lighting, large-size LED display and LED automotive lighting a significant growth in demand in 2017, China LED packaging production capacity will continue to grow. As one of the largest LED packaging enterprises in China, the monthly production capacity will increase from 50 billion LED chips in the third quarter of 2016 to 600-700 billion pieces at the end of the year. Month packaging capacity will be further expanded to 15 billion LED chips. Foshan National Star in 2016 will expand the LED packaging capacity of 40%, and will continue to expand in 2017.

3, 2017 LED lighting market size or will reach 33.1 billion US dollars

According to TrendForce “2017 Global Lighting Market Outlook” report shows that 2016 LED lighting market size reached 29.6 billion US dollars, and 2017 LED lighting market will reach 33.1 billion US dollars, LED lighting penetration rate of 52%. According to the analysis, benefit from the regional lighting market development, in 2016 Europe accounted for 23% of LED lighting, followed by North America and China. Looking ahead, the Asia-Pacific lighting market, the fastest growing.

GU5.3 36 Degree 12V 9W Dimmable LED Bulb

GU5.3 36 Degree 12V 9W Dimmable LED Bulb

GU5.3 36 Degree 12V 9W Dimmable LED Bulb is an ideal replacement for both indoor and outdoor applications. It is intended to provide accurate color rendering with light output of 590 lumens. The 12V lamp has a color temperature of 3000K. You can use this model for fully enclosed fixtures and damp locations.

GU5.3 36 Degree 12V 9W Dimmable LED Bulb Specification:

  • Width: 50.1mm (1.97″)
  • Height: 45.5mm (1.79″)
  • Dimmable: to < 20%
  • Minimum Operating Temperature: -40°C (ambient)
  • Typical Operating Temperature: 75°C – 85°C (base)
  • Maximum Operating Temperature: 95°C (base)
  • Wattage: 9W
  • Voltage: 12V +/- 1.2V
  • Power factor: 0.92
  • Color Temperature: 3000K
  • Beam Angle: 36°
  • CBCP: 1540
  • Halogen Equivalent: 75W
  • Lumens: 590
  • Efficacy: 66 Lm/W
  • CRI/R9: 80/>0
  • White Point (McA): 3

GU5.3 36 Degree 12V 9W Dimmable LED Bulb Features:

  • Exceptional beam control with smooth uniform beams
  • Single light source, single crisp shadow
  • VIVID series provides accurate color rendering across the visible spectrum from 400nm to 700nm, CRI-95, R9 >90
  • Accurate white rendering based on >70% excitation of Optical Brightening Agents with emission between 400nm & 440 nm
  • 85% more energy efficient than standard halogen lamps
  • Typical payback of one year or less
  • Rated lifetime of 35,000 hours
  • UL/CUL Class 2 and non-Class 2, FCC Title 47 Part 15B, RoHS, CE
  • Thermally and geometrically compatible with standard fixtures
  • Suitable for fully enclosed fixtures per UL 1993. Can be used with front glass cover
  • Suitable for damp locations per UL
  • Works with trailing edge and leading edge phase cut dimmers, 12V AC magnetic and electronic transformers and 12V DC transformers
  • Intended for use in MR16 compatible recessed downlights, track lighting and other indoor and outdoor applications
  • Soraa lamps are designed to safely turn down in any thermal environment not conducive to minimum airflow or proper ventilation

Non-Dimmable 160 Lm LED Bulb

Non-Dimmable 160 Lm LED Bulb

Non-Dimmable 160 Lm LED Bulb capable of 20-Watt output. Ideally suited for cabinet and appliance lighting, the G8/LED has an average lifespan of 15,000 hours. This performance LED light bulb uses up to 90% less energy compared to an incandescent light bulb. The Feit Electric G8/LED Light Bulb offers 160 lumens of bright illumination and has a color temperature of 3000K offering a soft white light.

Non-Dimmable 160 Lm LED Bulb Specification:

  • Estimated Yearly Energy Cost: 0.24
  • MOL: 1.6″H x .55″D
  • Volts: 120V
  • Life Year: 13.7
  • Life: 13.7 years
  • Life Hours: 15,000
  • Equivalent: 20 W
  • Color Temperature: 3000
  • Base: G8
  • Energy Used: 2 Watts
  • Lumens: 160

Non-Dimmable 160 Lm LED Bulb Features:

  • Energy Saving
  • Low Heat Output
  • Mercury-Free
  • Non-Dimmable
  • Non-Ultra Violet
  • Up to 90% Less Energy
  • Soft White

Square Surface Mount 60W LED Canopy Lights

Square Surface Mount 60W LED Canopy Lights

Square Surface Mount 60W LED Canopy Lights is a replacement for traditional 175-watt metal-halide (MH) fixtures and has a life expectancy of 35,000 hours—twice as long as MH fixtures—which reduces costly repairs and the need for replacements. A die cast aluminum housing with white powder coating and a shock-resistant PMMA lens with UV inhibitors protect internal components and LEDs. For maximum LED performance without overheating, the weatherproof light fixture also features 4-sided ventilation.

Square Surface Mount 60W LED Canopy Lights Specification:

Beam Angle 120 degree Beam Pattern Square
Color Temperature 4000 K Connector Type Pigtail
CRI 73 CRI Efficacy 100 lm/w
Finish White Water Resistance Weatherproof IP65
LED Brand Philips Emitting Color Natural 4000K
LED Lifetime 35000 Hours Number of LEDs in Unit 60 LEDs
LED Type CREE Intensity 6000 Lumen
Material Aluminum Operating Temperature -40~+60 °C
Polarity Sensitive No Weight 14 lbs
Replacement for 175 Watt MH Standards And Certifications CE/RoHS Compliant/UL Listed
Total Power Consumption 60 Watts Type Canopy Light

Square Surface Mount 60W LED Canopy Lights Features:

  • Durable Die-Cast Aluminum Housing
  • Secondary Heat Sink to Maximize Performance
  • Rust and Corrosion Proof Powder-Coated Finish
  • High Performance CREE LEDs
  • Low Operating Temperature

200 Watt LED Explosion Proof Light for Class 1 Division 2 Hazardous Locations

200 Watt LED Explosion Proof Light for Class 1 Division 2 Hazardous Locations

200 Watt LED Explosion Proof Light for Class 1 Division 2 Hazardous Locations also meets ATEX Zone 1 and Zone 21 requirements in the EU for the likely conditions of combustible gas, mists, dust, and vapors. A vibration-resistant die cast aluminum housing prevents the release of sparks from internal components, and 84 LEDs (3535 SMD) are protected by a tempered glass lens. LEDs in the waterproof LED flood light emit 18,125 Lumens of powerful natural white (4300K) illumination and produce a wide 120° beam pattern. This 200-watt LED Explosion-Proof Light replaces 400-watt metal-halide (MH) lights with comparable output and lasts 5 times longer. The LED fixture operates within a wide 100-277 VAC range.

200 Watt LED Explosion Proof Light for Class 1 Division 2 Hazardous Locations Specification:

Beam Angle 120 degree Color Temperature 4600 K
Current Draw 1568mA Efficacy 97 lm/w
Finish Gray Water Resistance Waterproof IP68
Emitting Color Natural 4300K LED Lifetime 50000 Hours
Number of LEDs in Unit 156 LEDs LED Type 3535 SMD
Lens Type Tempered Glass Intensity 18125 Lumen
Material Aluminum Operating Temperature -30~+50 °C
Weight 23 lbs Replacement for 400 Watt MH
Standards And Certifications ATEX/CE/LM-79/RoHS Compliant/SAA/UL Listed/UL844 UL File Number E366643/E483625 (Class 1, Division 2, Groups A, B, C, D)
Operating Voltage Range 100~277 VAC Watts 200 Watts

200 Watt LED Explosion Proof Light for Class 1 Division 2 Hazardous Locations Features:

  • Lighting for granaries, mills, and farm buildings
  • Paint booth lighting
  • LED mining lights
  • Wastewater and sewage plants
  • Military and aerospace facilities
  • Area with likely gasoline vapors like refineries, gas and oil facilities, gas stations, and repair shops
  • Areas covered under National Electric Code, NFPA 70, requirements in the US
  • Areas covered under ATEX Zone 1 and Zone 21 requirements in the EU

2017 global LED manufacturers accelerate into niche applications

According to the latest research shows that in 2016 the global LED market output value reached 14.8 billion US dollars, annual growth of 3.4%. Looking ahead 2017, LED market competition is still fierce, manufacturers will accelerate the transfer to a small pitch display screen, infrared and ultraviolet LED and other niche market in order to profit, estimated 2017 global LED market output value will reach 15.4 billion US dollars, the annual growth is 4%

2017-global-LED-manufacturers-accelerate-into-niche-applications

2016 global LED market output growth rate is not high, but the overall industry has undergone dramatic changes. Storage in the ultra-said, in the small space LED display the rise of demand, the upstream LED chip supply tight, making part of the LED chip and packaging devices, the first five years of price increases.

As for the downstream LED lighting products, there have been no small price increases, mainly due to reflect the rising cost of raw materials, especially copper, aluminum and other bulk metal raw materials prices in the second half of this year, making LED lighting manufacturers have to announce Prices to reflect the cost. However, the storage in the ultra-pointed out that this wave of wave of LED prices to help manufacturers of real profit is limited, so most LED manufacturers are actively considering the transformation strategy to accelerate into the niche market.

300W LED Parking Lot Light Natural White 5000K

300W LED Parking Lot Light Natural White 5000K

300W LED Parking Lot Light Natural White 5000K shines brightly when reliability and performance are critical. Operates within a wide 200-480 VAC range with no modification to the fixture. The parking lot light emits 29,000 lumens of natural white (5000K) illumination in a wide 85°/135° beam pattern. This powerful, energy-efficient LED area light uses just 300 watts of power—comparable to a 700-watt HID (high-intensity discharge) fixture. And with a life expectancy that’s approximately 3 times as long as HID fixtures, the LED light reduces costly repairs and the need for replacements.

300W LED Parking Lot Light Natural White 5000K Specification:

Beam Angle 135/85 degree Color Temperature 5000 K
Connection Type Pigtail Connector Type Pigtail
CRI 74 CRI Current Draw 1332mA @ 220 VAC
Dimmable No Efficacy 109 lm/w
Gauge 18 Input Frequency Range 50 ~ 60 Hz
Water Resistance Weatherproof IP65 LED Brand Samsung
Emitting Color Natural 5000K LED Lifetime 50000 Hours
Number of LEDs in Unit 120 LEDs LED Type 3535 SMD
Intensity 31877 Lumen Material Aluminum
Operating Temperature -45~+45 °C Replacement for 700 Watt HID
Standards And Certifications ETL Listed/RoHS Compliant Total Power Consumption 292 Watts
Operating Voltage Range 200~480 VAC Wire Length 37in(93.9cm)

300W LED Parking Lot Light Natural White 5000K Features:

  • Parking Lot & Structure Lighting
  • Roadway Lights
  • Car Dealerships
  • Security Floodlights
  • School Campus Lighting
  • Park Lighting

30W Photocontrol Mini LED Wall Pack

30W Photocontrol Mini LED Wall Pack

30W Photocontrol Mini LED Wall Pack provide ample safety and work illumination for loading bays, commercial entry ways, and security lighting, while using a fraction of the energy traditional HIDs require. Equipped with a self contained driver and either 120V AC or 208~277V AC light detecting photocell to conserve energy during the day. Durable weatherproof IP65 rated housing and wide 120° beam pattern.

30W Photocontrol Mini LED Wall Pack Specification:

Beam Angle 120 degree Color Temperature 5500 K
Comparable MH Wattage 139 Watts CRI 87 CRI
Current Draw 260mA Efficacy 76 lm/w
IP Rating Weatherproof IP65 LED Color Cool 5500K
LED Type Philips Lumen 2400 Lumen
Material Aluminum Operating Temperature -30~+40 °C
Weight 3.9 lbs Replacement For 100 Watt MH/175 Watt MH
Special Features Photoelectric Sensor/Weatherproof Standards And Certifications LM-80/UL Listed
Total Power Consumption 31.4 Watts Type Photocontrol/Wall Pack

30W Photocontrol Mini LED Wall Pack Application:

  • Security Lighting
  • Warehouse Bays
  • Commercial Entry Ways
  • Indoor Stadium Lighting
  • Gas Station Lighting
  • Commercial and Industrial Exterior Lighting
