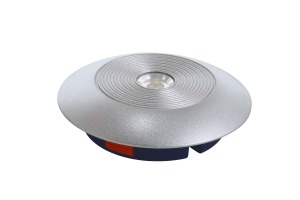

LDV DOWNLIGHT S 830 L80 AL – Under cabinet lights – Indoor LED luminaires

LDV DOWNLIGHT S 830 L80 AL – Under cabinet lights – Indoor LED luminaires LDV DOWNLIGHT S 830 L80 AL - Under cabinet lights - Indoor LED luminaires

Electrical data
Operating mode Electronic control gear (ECG)
Nominal wattage 7.00 W
Nominal voltage 220…240 V
Mains frequency 50 Hz/60 Hz
Nominal current 0.04 A
Light technical data
Color temperature 3000 K
Beam angle 80 °
Dimensions & weight
Length 88.0 mm
Width 88.0 mm
Diameter 88.0 mm
Height 13.0 mm
Colors & materials
Body material Aluminum
Product color Anodized
Additional product data
Number of lighting outlets 1
Equipment LED OSLON
Equipped with lamp Yes
Capabilities
Type of installation Recessed mounting
Adjustable No
Type of connection Connector
Certificates & standards
Protection class II
Type of protection IP21

Shelf lighting
Accessories
LEDVANCE DOWNLIGHT
LEDVANCE DOWNLIGHT S

Zoom in
Zoom out
Resize
Product benefits
Particularly small dimensions
Shallow mounting depth
Simple installation using the classic side holes in the shelves
Variable installation possibilities
Emits less heat than classic halogen luminaires
Areas of application
Energy-saving recessed furniture luminaire
Can be used as replacement for 20 W low-voltage halogen applications
Fits into 16 mm shelving and kitchen cupboards with standard 8 mm cable ducts
Wide spectrum of applications [..
Indoor LED luminaires
Under cabinet lights
LEDVANCE DOWNLIGHT S
Revitalizing & restoring
Application, important data at a glance
830 L80 WT
840 L80 WT
840 L80 AL
830 L80 AL
Zoom image
LDV DOWNLIGHT S 830 L80 AL
Product data sheet
Add to notepad
Technical data
Expand
Graphics and application images
Expand
Downloads
Expand
File Type Size
pdf
Product Family Datasheet
Technical data sheet pdf 265.1 KB
pdf
Installation guide
Mounting instructions pdf 362. All rights reserved:8 KB
Packaging information
Expand
Country-specific information
Expand
Print this page
Jump to top
Global OSRAM websites OSRAM in the Social Web
Share Sitemap
Imprint Terms of use Privacy Policy Contact ? 2013,000 K (Warm White) or 4,
Company Press Career Sustainability
Back to OSRAM homepage
Applications
Products
Tools & Services
Trends & Knowledge

Advanced full-text search
Products – LED technology: 3: Lighting of wellness areas
Attractive down to the finest detail
Application. LED Floater Headline
..] Show all
Product benefits
Particularly small dimensions
Shallow mounting depth
Simple installation using the classic side holes in the shelves
Variable installation possibilities
Emits less heat than classic halogen luminaires
Areas of application
Energy-saving recessed furniture luminaire
Can be used as replacement for 20 W low-voltage halogen applications
Fits into 16 mm shelving and kitchen cupboards with standard 8 mm cable ducts
Wide spectrum of applications
Product features
Mounting diameter: 68 mm
Ring colors in white matt or anodized aluminum
Color temperature: OSRAM GmbH:000 K (Neutral White)
Direct connection to a 220…240 V AC supply
Equipment / Accessories
Equipped with OSLON High Power LED Flood Light from OSRAM Reduce text
Family data sheet
Product family

EAN code Packaging unit
Pieces per unit		 Dimensions
l x w x h		 Gross weight Volume
4008321968623 Folding carton box
1		 112 mm x 57 mm x 107 mm 244.00 g 0.68 dm³
4008321968319 Shipping carton box
4		 245 mm x 150 mm x 145 mm 1129.00 g 5.33 dm³
4008321968494 Shipping carton box
16		 286 mm x 328 mm x 280 mm 5001.00 g 26.27 dm³
