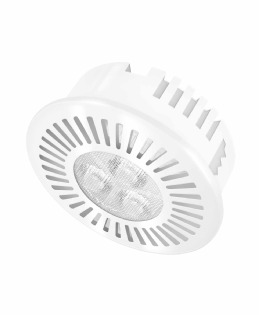

TRESOL 2X4.5 W WT – Deco & Living – Indoor LED luminaires
Electrical data
| Nominal wattage |
4.50 W |
| Mains frequency |
50…60 Hz |
| Operating mode |
Electronic control gear (ECG) |
Light technical data
| Color temperature |
3200 K |
| Beam angle |
30 ° |
| Luminous flux |
330 lm |
| Color rendering index Ra |
80 |
Dimensions & weight
| Length |
72.0 mm |
| Width |
72.0 mm |
| Diameter |
72.0 mm |
| Height |
34.0 mm |
Colors & materials
| Body material |
Polycarbonate (PC) |
| Product color |
White |
| Cover material |
Polycarbonate (PC) |
| Reflector material |
Plastic |
Temperatures
| Ambient temperature range |
…+25 °C |
Additional product data
| Number of lighting outlets |
2x 1 |
| Equipment |
LED |
| Equipped with lamp |
Yes |
| Reflector type |
Lens |
| New article |
NEW |
Capabilities
| Type of installation |
Recessed mounting/Surface mounting |
| Adjustable |
No |
| Dimmable |
No |
| With on/off switch |
No |
| Type of connection |
Plug transformer |
Certificates & standards
| Standards |
CE |
| Protection class |
insulation class II (safety insulation) |
| Type of protection |
IP20 |
| Protection against ignition and fire |
MM |
Country specific categorizations
| Order reference |
73140 |
5 W WT
Zoom image
TRESOL 2X4.5 W SI
4. important data at a glance
4, OSRAM GmbH.5 W WT Add-on
2X4.5 W SI
4. Hotel room lighting
TRESOL
Zoom in
Zoom out
Resize
Product benefits
Ready for installation
Exceptionally bright
2 in 1 Design. All rights reserved. matt silver or white
Family data sheet
Product family.
Indoor LED luminaires
Deco & Living
TRESOL
Superbly planned
Application. Home office lighting
Comfortable & variable
Application:000 K (Warm White)
High-power LED downlight with integrated control gear
Color: recessed mounting or surface mounting with add-on kit
High brightness thanks to LED technology
Areas of application
Suspended ceilings
Shelves
Glass cabinets
Living rooms
Dining rooms
Kitchens
Product features
Color temperature,5 W SI Add-on
2X4: LED Floater Headline
:5 W WT
Product data sheet
Add to notepad
Technical data
Expand
Graphics and application images
Expand
Packaging imageZoom image
Application PicturesZoom image
Application PicturesZoom image
Packaging information
Expand
Print this page
Jump to top
Global OSRAM websites OSRAM in the Social Web
Share Sitemap
Imprint Terms of use Privacy Policy Contact ? 2013: 3:
Company Press Career Sustainability
Back to OSRAM homepage
Applications
Products
Tools & Services
Trends & Knowledge
Advanced full-text search
Products – High Power LED Flood Light technology:5 W WT
| EAN code |
Packaging unit
Pieces per unit |
Dimensions
l x w x h |
Gross weight |
Volume |
| 4008321990129 |
Folding carton box
2 |
203 mm x 57 mm x 110 mm |
320.28 g |
1.27 dm³ |
| 4008321990136 |
Shipping carton box
12 |
340 mm x 217 mm x 128 mm |
2096.00 g |
9.44 dm³ |
