recessed mounting or surface mounting with add-on kit
High brightness thanks to High Power LED Flood Light technology
Areas of application
Suspended ceilings
Shelves
Glass cabinets
Living rooms
Dining rooms
Kitchens
Product features
Color temperature, 3:000 K (Warm White)

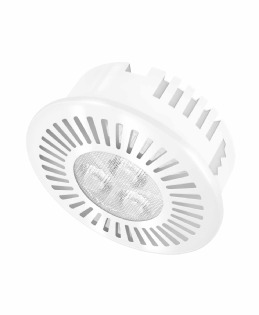

High-power LED downlight with integrated control gear
:Product benefits
Ready for installation
Exceptionally bright
2 in 1 Design
Electrical data
| Nominal wattage |
4.50 W |
| Mains frequency |
50…60 Hz |
| Operating mode |
Electronic control gear (ECG) |
Light technical data
| Color temperature |
3200 K |
| Beam angle |
30 ° |
| Luminous flux |
330 lm |
| Color rendering index Ra |
80 |
Dimensions & weight
| Length |
72.0 mm |
| Width |
72.0 mm |
| Diameter |
72.0 mm |
| Height |
34.0 mm |
Colors & materials
| Body material |
Polycarbonate (PC) |
| Product color |
White |
| Cover material |
Polycarbonate (PC) |
| Reflector material |
Plastic |
Temperatures
| Ambient temperature range |
…+25 °C |
Additional product data
| Number of lighting outlets |
2x 1 |
| Equipment |
LED |
| Equipped with lamp |
Yes |
| Reflector type |
Lens |
| New article |
NEW |
Capabilities
| Type of installation |
Recessed mounting/Surface mounting |
| Adjustable |
No |
| Dimmable |
No |
| With on/off switch |
No |
| Type of connection |
Plug transformer |
Certificates & standards
| Standards |
CE |
| Protection class |
insulation class II (safety insulation) |
| Type of protection |
IP20 |
| Protection against ignition and fire |
MM |
Country specific categorizations
| Order reference |
73140 |
important data at a glance
4.5 W WT Add-on
2X4.
