Power: 10-60W
Voltage: 85-265VAC
Lumens: 900-5400lm
Color: 3000K/4000K/5000K
Beam Angle: 15°/24°/38°/60°
Warranty: 5 years
Need more discount? Contact us now!
Product Overview:
ENELTEC wholesale LED track light from China with 10-60W, CREE LED, 900-5400lm, Triac/Dali DimmableFunction, PF>0.95, CRI>80/90 .
LED track light Features:
Material: Diecast Aluminum
Shade Material: Acrylic
Simple form and clean design
Performance luminaire with integral LED and driver
Powder-coated finishes
Accommodates one lens or one glare control accessory
Dimming: 100% - 5% ELV
Field replaceable TIR lens for beam control (25° & 35° included)
Dimmable when used with ELV Dimmer dimmers(not included)
Title 24 compliant
Energy Star Qualified
ETL Listed
Warranty: 5 Years Functional, 2 Years Finish
Made In China

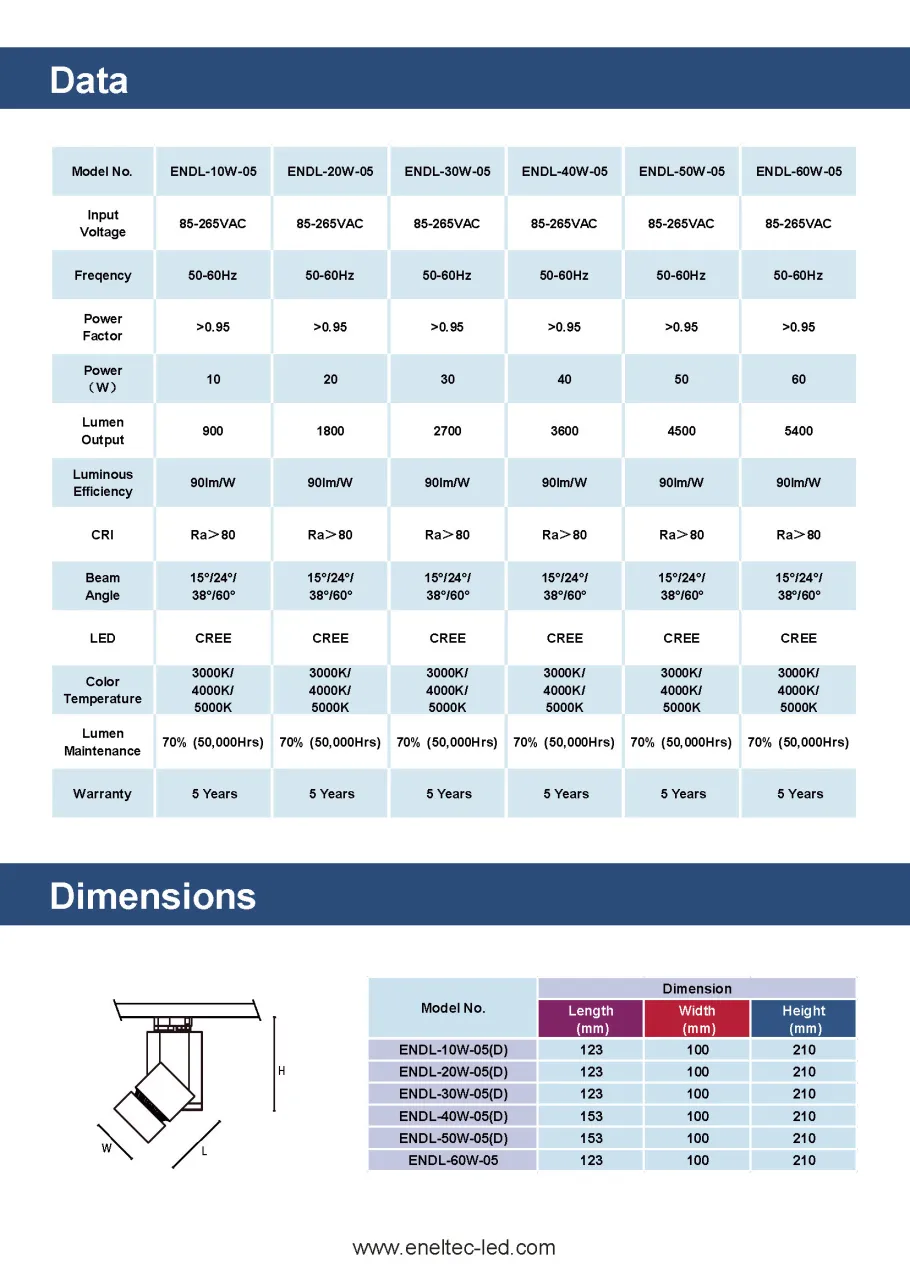

Specifications:
| No. | Pictures | Model No. | Type | Power (W) |
Lumen (LM) |
Beam Angle |
Input Voltage |
Color |
| 1 |  |
ENDL-10W2-05 | 2 Wires NON Dimmable | 10 | 900 | 15°/24°/ 38°/60° |
85-265VAC | 3000K/ 4000K/ 5000K |
| 2 | |
ENDL-10W2-05T | 2 Wires Triac Dimmable | 10 | 900 | 15°/24°/ 38°/60° |
85-265VAC | 3000K/ 4000K/ 5000K |
| 3 | |
ENDL-10W3-05 | 3 Wires NON Dimmable | 10 | 900 | 15°/24°/ 38°/60° |
85-265VAC | 3000K/ 4000K/ 5000K |
| 4 | |
ENDL-10W3-05T | 3 Wires Triac Dimmable | 10 | 900 | 15°/24°/ 38°/60° |
85-265VAC | 3000K/ 4000K/ 5000K |
| 5 | |
ENDL-10W4-05 | 4 Wires NON Dimmable | 10 | 900 | 15°/24°/ 38°/60° |
85-265VAC | 3000K/ 4000K/ 5000K |
| 6 | |
ENDL-10W4-05T | 4 Wires Triac Dimmable | 10 | 900 | 15°/24°/ 38°/60° |
85-265VAC | 3000K/ 4000K/ 5000K |
| 7 | |
ENDL-10W4-05D | 4 Wires Dali Dimmable | 10 | 900 | 15°/24°/ 38°/60° |
85-265VAC | 3000K/ 4000K/ 5000K |
| 8 | |
ENDL-20W2-05 | 2 Wires NON Dimmable | 20 | 1800 | 15°/24°/ 38°/60° |
85-265VAC | 3000K/ 4000K/ 5000K |
| 9 | |
ENDL-20W2-05T | 2 Wires Triac Dimmable | 20 | 1800 | 15°/24°/ 38°/60° |
85-265VAC | 3000K/ 4000K/ 5000K |
| 10 | |
ENDL-20W3-05 | 3 Wires NON Dimmable | 20 | 1800 | 15°/24°/ 38°/60° |
85-265VAC | 3000K/ 4000K/ 5000K |
| 11 | |
ENDL-20W3-05T | 3 Wires Triac Dimmable | 20 | 1800 | 15°/24°/ 38°/60° |
85-265VAC | 3000K/ 4000K/ 5000K |
| 12 | |
ENDL-20W4-05 | 4 Wires NON Dimmable | 20 | 1800 | 15°/24°/ 38°/60° |
85-265VAC | 3000K/ 4000K/ 5000K |
| 13 | |
ENDL-20W4-05T | 4 Wires Triac Dimmable | 20 | 1800 | 15°/24°/ 38°/60° |
85-265VAC | 3000K/ 4000K/ 5000K |
| 14 | |
ENDL-20W4-05D | 4 Wires Dali Dimmable | 20 | 1800 | 15°/24°/ 38°/60° |
85-265VAC | 3000K/ 4000K/ 5000K |
| 15 | |
ENDL-30W2-05 | 2 Wires NON Dimmable | 30 | 2700 | 15°/24°/ 38°/60° |
85-265VAC | 3000K/ 4000K/ 5000K |
| 16 | |
ENDL-30W2-05T | 2 Wires Triac Dimmable | 30 | 2700 | 15°/24°/ 38°/60° |
85-265VAC | 3000K/ 4000K/ 5000K |
| 17 | |
ENDL-30W3-05 | 3 Wires NON Dimmable | 30 | 2700 | 15°/24°/ 38°/60° |
85-265VAC | 3000K/ 4000K/ 5000K |
| 18 | |
ENDL-30W3-05T | 3 Wires Triac Dimmable | 30 | 2700 | 15°/24°/ 38°/60° |
85-265VAC | 3000K/ 4000K/ 5000K |
| 19 | |
ENDL-30W4-05 | 4 Wires NON Dimmable | 30 | 2700 | 15°/24°/ 38°/60° |
85-265VAC | 3000K/ 4000K/ 5000K |
| 20 | |
ENDL-30W4-05T | 4 Wires Triac Dimmable | 30 | 2700 | 15°/24°/ 38°/60° |
85-265VAC | 3000K/ 4000K/ 5000K |
| 21 | |
ENDL-30W4-05D | 4 Wires Dali Dimmable | 30 | 2700 | 15°/24°/ 38°/60° |
85-265VAC | 3000K/ 4000K/ 5000K |
| 22 | |
ENDL-40W2-05 | 2 Wires NON Dimmable | 40 | 3600 | 15°/24°/ 38°/60° |
85-265VAC | 3000K/ 4000K/ 5000K |
| 23 | |
ENDL-40W2-05T | 2 Wires Triac Dimmable | 40 | 3600 | 15°/24°/ 38°/60° |
85-265VAC | 3000K/ 4000K/ 5000K |
| 24 | |
ENDL-40W3-05 | 3 Wires NON Dimmable | 40 | 3600 | 15°/24°/ 38°/60° |
85-265VAC | 3000K/ 4000K/ 5000K |
| 25 | |
ENDL-40W3-05T | 3 Wires Triac Dimmable | 40 | 3600 | 15°/24°/ 38°/60° |
85-265VAC | 3000K/ 4000K/ 5000K |
| 26 | |
ENDL-40W4-05 | 4 Wires NON Dimmable | 40 | 3600 | 15°/24°/ 38°/60° |
85-265VAC | 3000K/ 4000K/ 5000K |
| 27 | |
ENDL-40W4-05T | 4 Wires Triac Dimmable | 40 | 3600 | 15°/24°/ 38°/60° |
85-265VAC | 3000K/ 4000K/ 5000K |
| 28 | |
ENDL-40W4-05D | 4 Wires Dali Dimmable | 40 | 3600 | 15°/24°/ 38°/60° |
85-265VAC | 3000K/ 4000K/ 5000K |
| 29 | |
ENDL-50W2-05 | 2 Wires NON Dimmable | 50 | 4500 | 15°/24°/ 38°/60° |
85-265VAC | 3000K/ 4000K/ 5000K |
| 30 | |
ENDL-50W2-05T | 2 Wires Triac Dimmable | 50 | 4500 | 15°/24°/ 38°/60° |
85-265VAC | 3000K/ 4000K/ 5000K |
| 31 | |
ENDL-50W3-05 | 3 Wires NON Dimmable | 50 | 4500 | 15°/24°/ 38°/60° |
85-265VAC | 3000K/ 4000K/ 5000K |
| 32 | |
ENDL-50W3-05T | 3 Wires Triac Dimmable | 50 | 4500 | 15°/24°/ 38°/60° |
85-265VAC | 3000K/ 4000K/ 5000K |
| 33 | |
ENDL-50W4-05 | 4 Wires NON Dimmable | 50 | 4500 | 15°/24°/ 38°/60° |
85-265VAC | 3000K/ 4000K/ 5000K |
| 34 | |
ENDL-50W4-05T | 4 Wires Triac Dimmable | 50 | 4500 | 15°/24°/ 38°/60° |
85-265VAC | 3000K/ 4000K/ 5000K |
| 35 | |
ENDL-50W4-05D | 4 Wires Dali Dimmable | 50 | 4500 | 15°/24°/ 38°/60° |
85-265VAC | 3000K/ 4000K/ 5000K |
| 36 | |
ENDL-60W2-05 | 2 Wires NON Dimmable | 60 | 5400 | 15°/24°/ 38°/60° |
85-265VAC | 3000K/ 4000K/ 5000K |
| 37 | |
ENDL-60W3-05 | 3 Wires NON Dimmable | 60 | 5400 | 15°/24°/ 38°/60° |
85-265VAC | 3000K/ 4000K/ 5000K |
| 38 | |
ENDL-60W4-05 | 4 Wires NON Dimmable | 60 | 5400 | 15°/24°/ 38°/60° |
85-265VAC | 3000K/ 4000K/ 5000K |
DATA download:
