Power: 20-150W
Voltage: 100-240VAC/12VDC/24VDC/48VDC
Lumens: 2100-15750lm
Color: 3000-3500K/4000-4500K/6000-6500K
Beam Angle: 60°/90°/120°
Warranty: 24 Months
Product Overview:
LED Explosion Proof Lights are ppplicable to mine field, workshops,military establishments,gas station,and the place where there is inflammable and explosiue materials.
LED Explosion Proof Lights Specificaiton:
| Item | ENEP- 20W-01 |
ENEP- 30W-01 |
ENEP- 40W-01 |
ENEP- 50W-01 |
ENEP- 60W-01 |
ENEP- 70W-01 |
ENEP- 80W-01 |
ENEP- 90W-01 |
ENEP- 100W-01 |
ENEP- 110W-01 |
ENEP- 120W-01 |
ENEP- 130W-01 |
ENEP- 140W-01 |
ENEP- 150W-01 |
| Voltage | 100-240VAC/ 12VDC/ 24VDC |
100-240VAC/ 12VDC/ 24VDC |
100-240VAC/ 12VDC/ 24VDC |
100-240VAC/ 24VDC/ 48VDC |
100-240VAC/ 24VDC/ 48VDC |
100-240VAC/ 24VDC/ 48VDC |
100-240VAC/ 24VDC/ 48VDC |
100-240VAC | 100-240VAC | 100-240VAC | 100-240VAC | 100-240VAC | 100-240VAC | 100-240VAC |
| PF | >0.95 | >0.95 | >0.95 | >0.95 | >0.95 | >0.95 | >0.95 | >0.95 | >0.95 | >0.95 | >0.95 | >0.95 | >0.95 | >0.95 |
| Power Efficiency |
0.94 | 0.94 | 0.94 | 0.94 | 0.94 | 0.94 | 0.94 | 0.94 | 0.94 | 0.94 | 0.94 | 0.94 | 0.94 | 0.94 |
| THD | <3% | <3% | <3% | <3% | <3% | <3% | <3% | <3% | <3% | <3% | <3% | <3% | <3% | <3% |
| Power (W) |
20 | 30 | 40 | 50 | 60 | 70 | 90 | 100 | 110 | 120 | 130 | 140 | 150 | |
| LED Lumen (lm) |
2400 | 3600 | 4800 | 6000 | 7200 | 8400 | 9600 | 10800 | 12000 | 13200 | 14400 | 15600 | 16800 | 18000 |
| System Lumen Output (lm) |
2100 | 3150 | 4200 | 5250 | 6300 | 7350 | 8400 | 9450 | 10500 | 11550 | 12600 | 13650 | 14700 | 15750 |
| Beam Angle |
60°/ 90°/ 120° |
60°/ 90°/ 120° |
60°/ 90°/ 120° |
60°/ 90°/ 120° |
60°/ 90°/ 120° |
60°/ 90°/ 120° |
60°/ 90°/ 120° |
60°/ 90°/ 120° |
60°/ 90°/ 120° |
60°/ 90°/ 120° |
60°/ 90°/ 120° |
60°/ 80°/ 100° |
60°/ 80°/ 100° |
60°/ 80°/ 100° |
| Color | 3000-3500K / 4000-4500K / 6000-6500K | |||||||||||||
| CRI | >80 | >80 | >80 | >80 | >80 | >80 | >80 | >80 | >80 | >80 | >80 | >80 | >80 | >80 |
| Lux from 3m |
68 | 103 | 138 | 173 | 208 | 243 | 277 | 312 | 347 | 381 | 416 | 451 | 486 | 520 |
| Lux from 6m |
19 | 27 | 35 | 43 | 51 | 60 | 68 | 77 | 85 | 116 | 147 | 178 | 209 | 172 |
| Lux from 8m |
12 | 16 | 20 | 24 | 29 | 33 | 38 | 43 | 47 | 74 | 101 | 128 | 155 | 115 |
| Lux from 10m |
10 | 12 | 14 | 16 | 18 | 21 | 25 | 27 | 30 | 32 | 35 | 38 | 41 | 44 |
| LED | BRIDGELUX | BRIDGELUX | BRIDGELUX | BRIDGELUX | BRIDGELUX | BRIDGELUX | BRIDGELUX | BRIDGELUX | BRIDGELUX | BRIDGELUX | BRIDGELUX | BRIDGELUX | BRIDGELUX | BRIDGELUX |
| LED Driver |
LiFud | LiFud | LiFud | LiFud | MOSO | MOSO | MOSO | MOSO | MOSO | MOSO | MOSO | MOSO | MOSO | MOSO |
| Working Temperature |
-40℃～60℃ | -40℃～60℃ | -40℃～60℃ | -40℃～60℃ | -40℃～60℃ | -40℃～60℃ | -40℃～60℃ | -40℃～60℃ | -40℃～60℃ | -40℃～60℃ | -40℃～60℃ | -40℃～60℃ | -40℃～60℃ | -40℃～60℃ |
| Working Humidity |
0～100% | 0～100% | 0～100% | 0～100% | 0～100% | 0～100% | 0～100% | 0～100% | 0～100% | 0～100% | 0～100% | 0～100% | 0～100% | 0～100% |
| IP Rating |
IP67 | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 |
| Explosion- Proof Rating |
Ex dIICT6 | Ex dIICT6 | Ex dIICT6 | Ex dIICT6 | Ex dIICT6 | Ex dIICT6 | Ex dIICT6 | Ex dIICT6 | Ex dIICT6 | Ex dIICT6 | Ex dIICT6 | Ex dIICT6 | Ex dIICT6 | Ex dIICT6 |
| Anti-corrosion Rating |
WF2 | WF2 | WF2 | WF2 | WF2 | WF2 | WF2 | WF2 | WF2 | WF2 | WF2 | WF2 | WF2 | WF2 |
| Lifespan (Hour) |
50000 | 50000 | 50000 | 50000 | 50000 | 50000 | 50000 | 50000 | 50000 | 50000 | 50000 | 50000 | 50000 | 50000 |

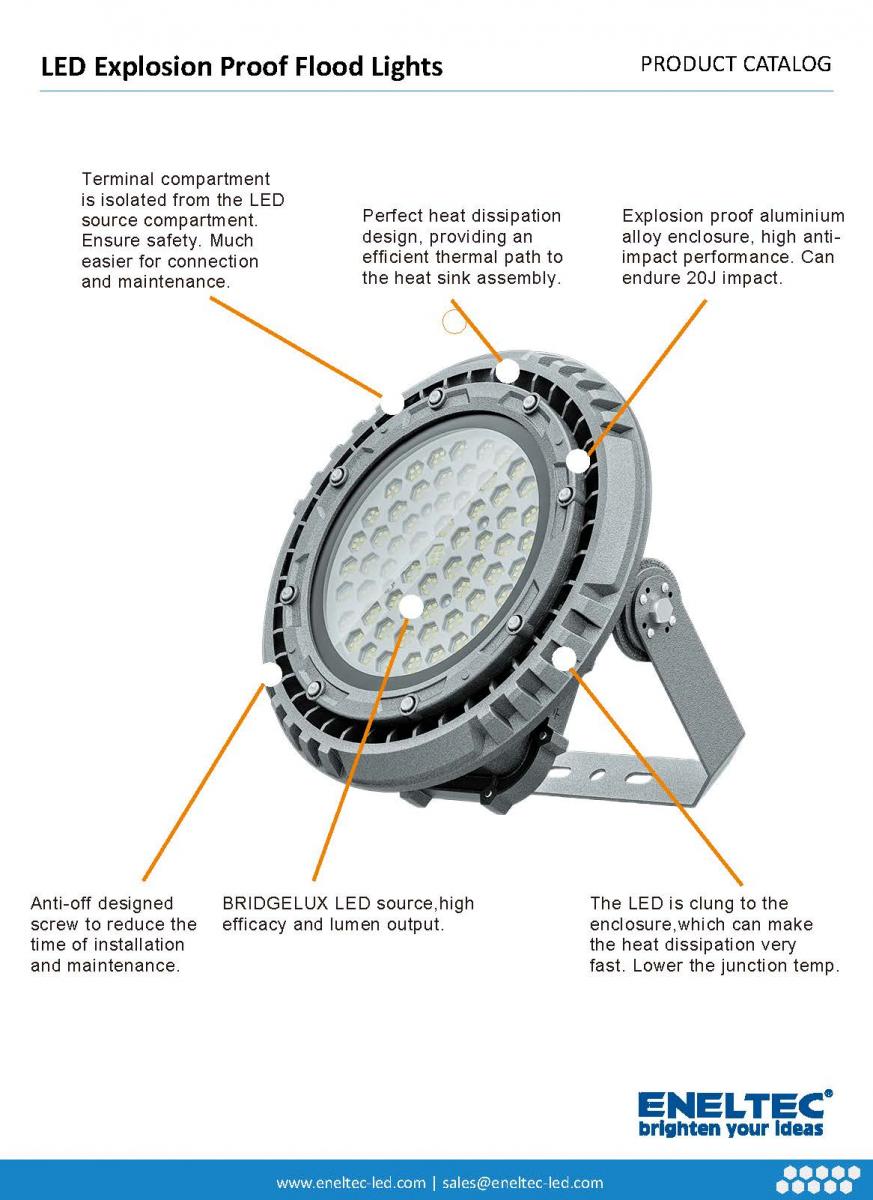

LED Explosion Proof Flood Lights Special Features:
--High Power LEDs as the Light Source;
--Aluminium Alloy Extruded Shape;
--Excellent Heat Sinking Design;
--Proprietary housing design for best thermal management & lumen maintenance;
--Long Term Lumen Maintainance & Long lifespan.
--Ideal for landscape and architecture lighting.
--Widely used in Home, office, display case lighting, under cabinet lighting, art lighting, boat lighting, and accent lighting.
Specifications:
| No. | Picture | Model No. | Voltage | Power Consumption (W) |
Lumen Output (Lm) |
Beam Angle |
Color |
| 1 |  |
ENEP-20W-01 | 100-240VAC/ 12VDC/ 24VDC |
20 | 2100 | 60°/90°/120° | 3000-3500K/ 4000-4500K/ 6000-6500K |
| 2 | |
ENEP-30W-01 | 100-240VAC/ 12VDC/ 24VDC |
30 | 3150 | 60°/90°/120° | 3000-3500K/ 4000-4500K/ 6000-6500K |
| 3 | |
ENEP-40W-01 | 100-240VAC/ 12VDC/ 24VDC |
40 | 4200 | 60°/90°/120° | 3000-3500K/ 4000-4500K/ 6000-6500K |
| 4 | |
ENEP-50W-01 | 100-240VAC/ 24VDC/ 48VDC |
50 | 5250 | 60°/90°/120° | 3000-3500K/ 4000-4500K/ 6000-6500K |
| 5 | |
ENEP-60W-01 | 100-240VAC/ 12VDC/ 24VDC |
60 | 6300 | 60°/90°/120° | 3000-3500K/ 4000-4500K/ 6000-6500K |
| 6 | |
ENEP-70W-01 | 100-240VAC/ 24VDC |
70 | 7350 | 60°/90°/120° | 3000-3500K/ 4000-4500K/ 6000-6500K |
| 7 | |
ENEP-80W-01 | 100-240VAC/ 24VDC |
80 | 8400 | 60°/90°/120° | 3000-3500K/ 4000-4500K/ 6000-6500K |
| 8 | |
ENEP-90W-01 | 100-240VAC | 90 | 9450 | 60°/90°/120° | 3000-3500K/ 4000-4500K/ 6000-6500K |
| 9 | |
ENEP-100W-01 | 100-240VAC | 100 | 10500 | 60°/90°/120° | 3000-3500K/ 4000-4500K/ 6000-6500K |
| 10 | |
ENEP-110W-01 | 100-240VAC | 110 | 11550 | 60°/90°/120° | 3000-3500K/ 4000-4500K/ 6000-6500K |
| 11 | |
ENEP-120W-01 | 100-240VAC | 120 | 12600 | 60°/90°/120° | 3000-3500K/ 4000-4500K/ 6000-6500K |
| 12 | |
ENEP-130W-01 | 100-240VAC | 130 | 13600 | 60°/80°/100° | 3000-3500K/ 4000-4500K/ 6000-6500K |
| 13 | |
ENEP-140W-01 | 100-240VAC | 140 | 14700 | 60°/80°/100° | 3000-3500K/ 4000-4500K/ 6000-6500K |
| 14 | |
ENEP-150W-01 | 100-240VAC | 150 | 15750 | 60°/80°/100° | 3000-3500K/ 4000-4500K/ 6000-6500K |
