Power: 18-48W
Voltage: 24VDC/85-265VAC
Lumens: 1620-4320lm
Color: 3000K/4000K/6000K
Beam Angle: 6°/15°/25°/45°/60°
Warranty: 36 Months

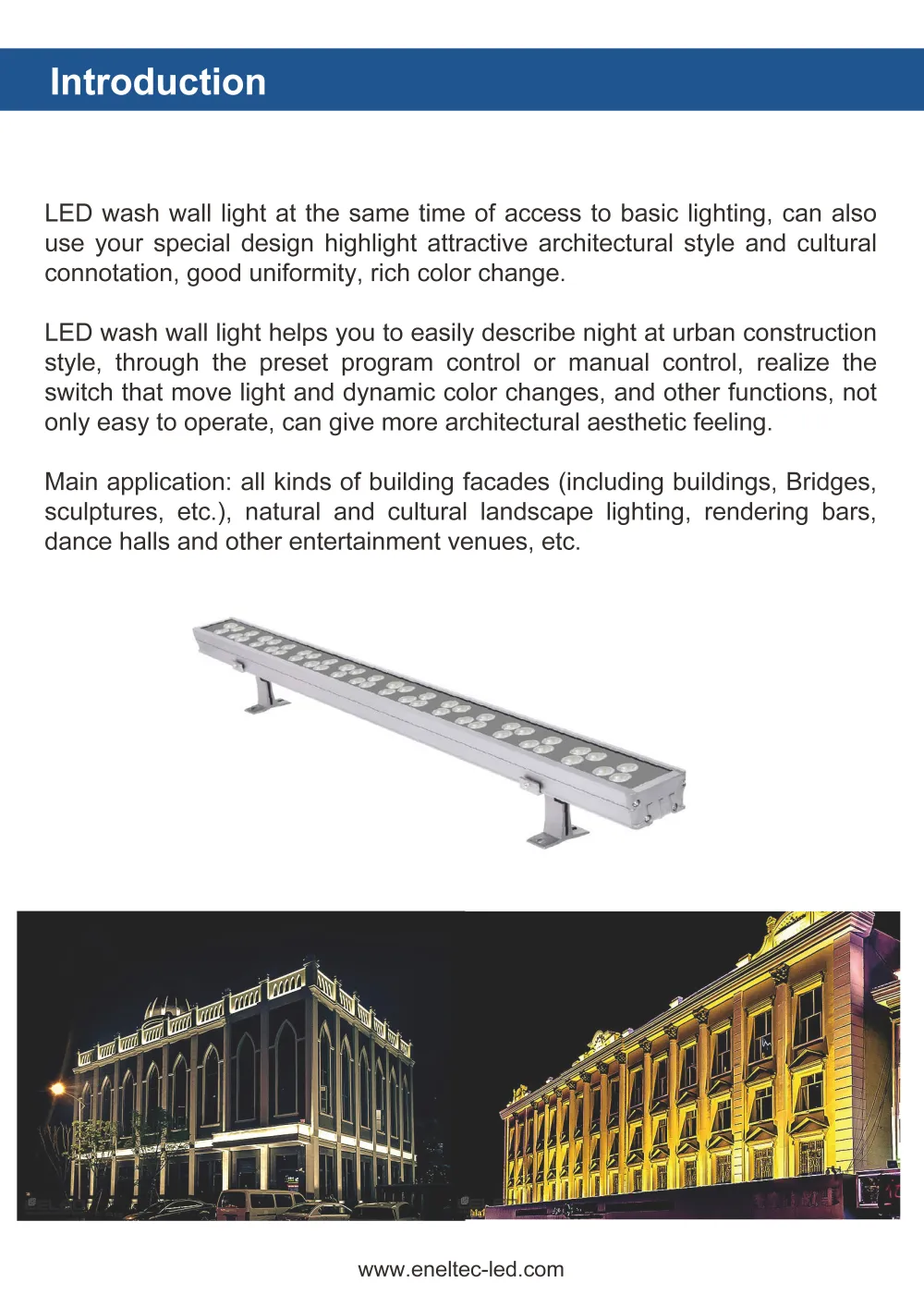

Product Overview:
LED wall wash light at the same time of access to basic lighting, can also use your special design highlight attractive architectural style and cultural connotation, good uniformity, rich color change.
Application:
Specifications:
| No. | Model No. |
Picture | Input Voltage | Power | Color | Beam Angle | LM |

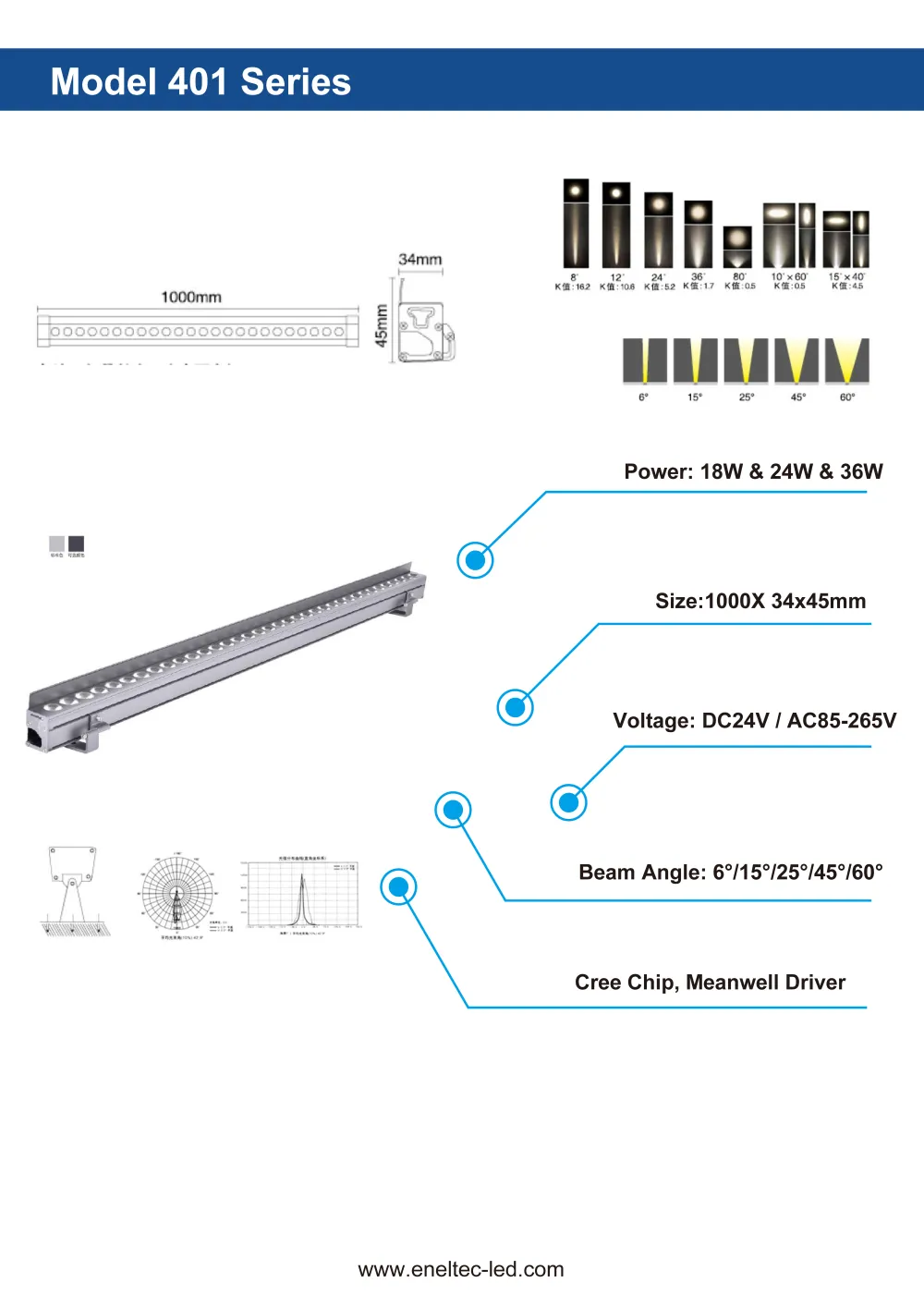

| 1 | ENFL-18W401-02A |  |
24VDC / Meanwell Driver | 18W | 3000K/ 4000K/ 6000K | 6°/15°/25°/45°/60° | 1620LM |
| 2 | ENFL-18W401-02B | |
AC85-265V / Meanwell Driver | 18W | 3000K/ 4000K/ 6000K | 6°/15°/25°/45°/60° | 1620LM |
| 3 | ENFL-24W401-02A | |
24VDC / Meanwell Driver | 24W | 3000K/ 4000K/ 6000K | 6°/15°/25°/45°/60° | 2160LM |
| 4 | ENFL-24W401-02B | |
AC85-265V / Meanwell Driver | 24W | 3000K/ 4000K/ 6000K | 6°/15°/25°/45°/60° | 2160LM |
| 5 | ENFL-36W401-02A | |
24VDC / Meanwell Driver | 36W | 3000K/ 4000K/ 6000K | 6°/15°/25°/45°/60° | 3240LM |
| 6 | ENFL-36W401-02B | |
AC85-265V / Meanwell Driver | 36W | 3000K/ 4000K/ 6000K | 6°/15°/25°/45°/60° | 3240LM |

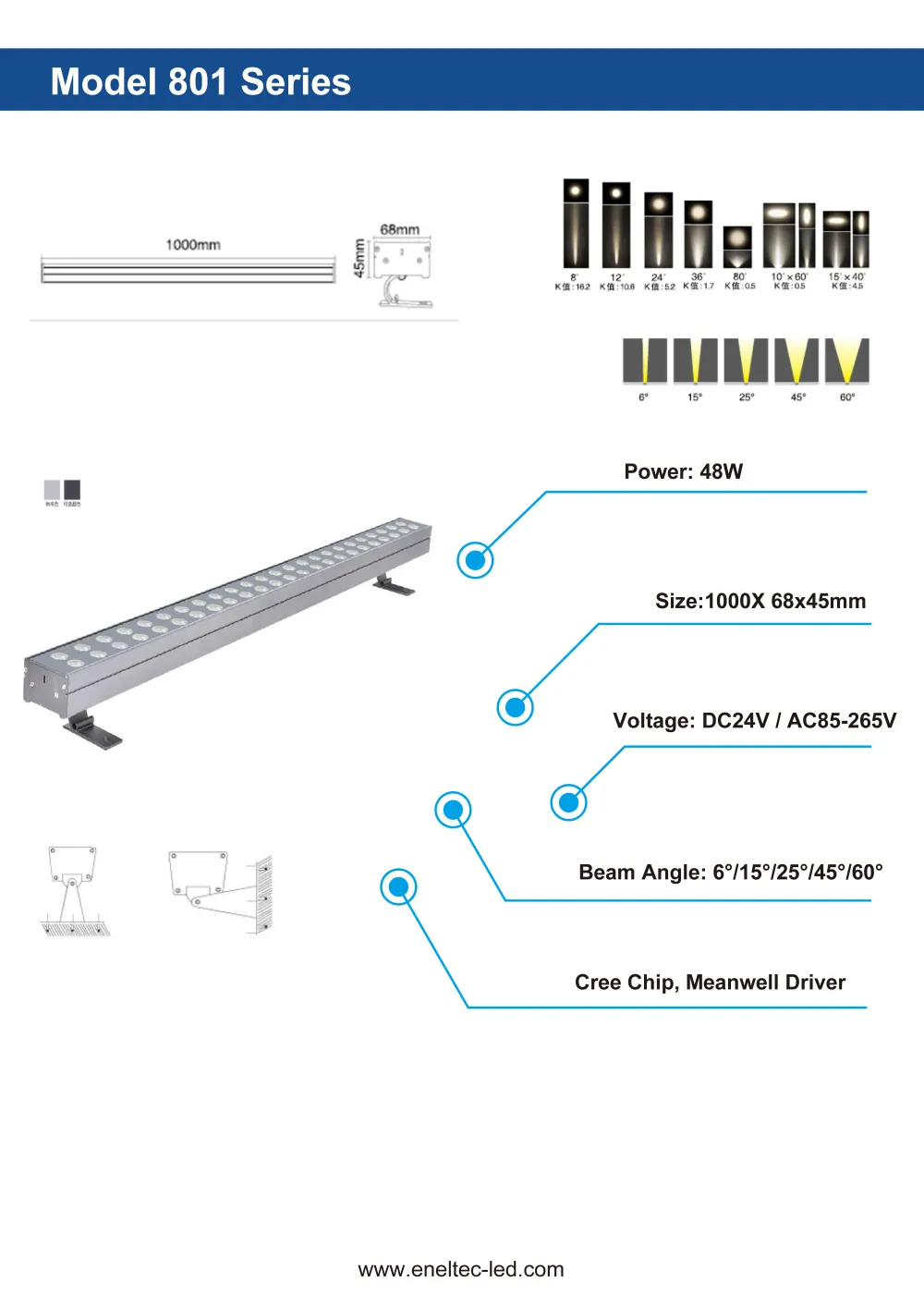

| 7 | ENFL-48W801-02A |  |
24VDC / Meanwell Driver | 48W | 3000K/ 4000K/ 6000K | 6°/15°/25°/45°/60° | 4320LM |
| 8 | ENFL-48W801-02B | |
AC85-265V / Meanwell Driver | 48W | 3000K/ 4000K/ 6000K | 6°/15°/25°/45°/60° | 4320LM |

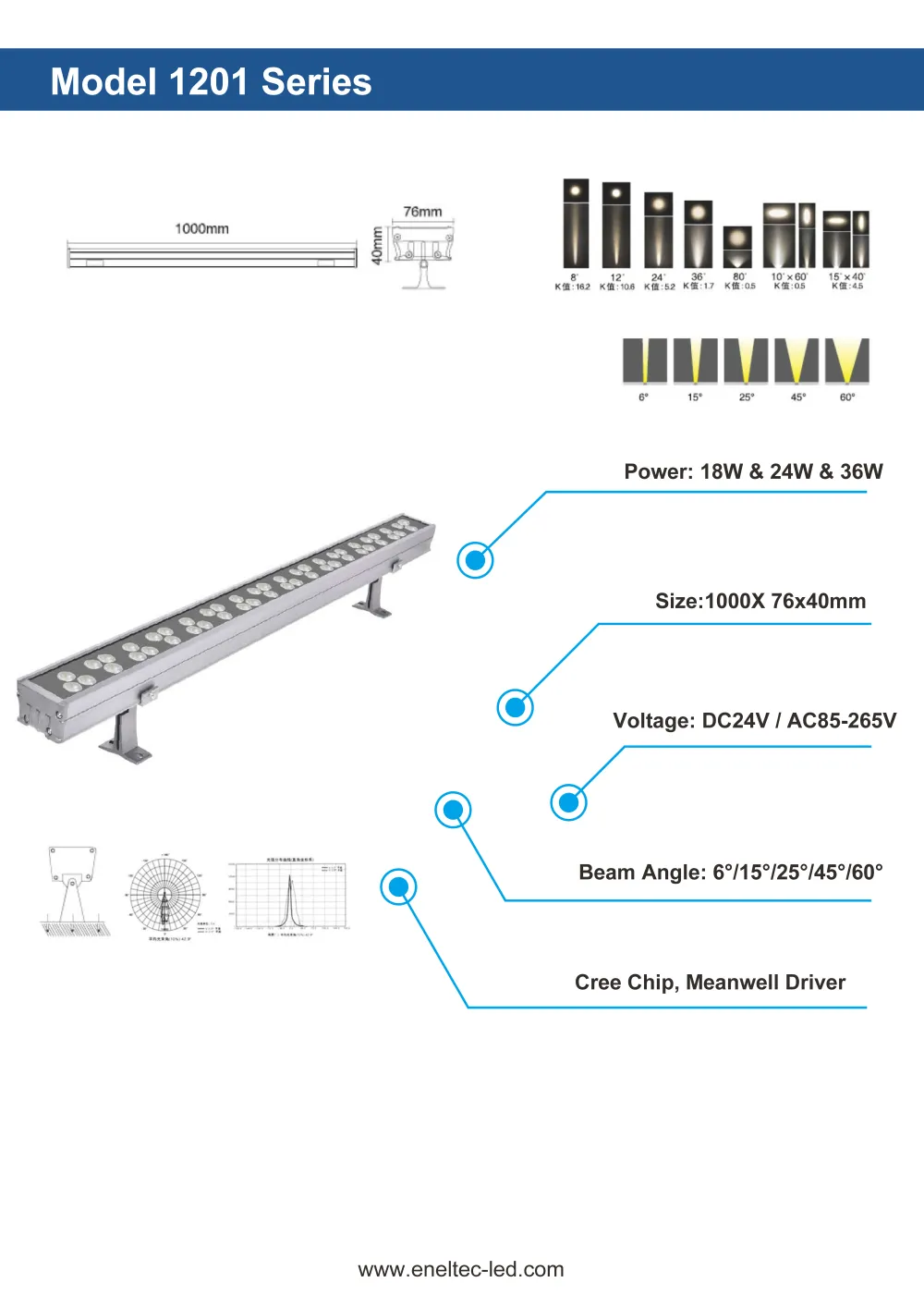

| 9 | ENFL-18W1201-02A |  |
24VDC / Meanwell Driver | 18W | 3000K/ 4000K/ 6000K | 6°/15°/25°/45°/60° | 1620LM |
| 10 | ENFL-18W1201-02B | |
AC85-265V / Meanwell Driver | 18W | 3000K/ 4000K/ 6000K | 6°/15°/25°/45°/60° | 1620LM |
| 11 | ENFL-24W1201-02A | |
24VDC / Meanwell Driver | 24W | 3000K/ 4000K/ 6000K | 6°/15°/25°/45°/60° | 2160LM |
| 12 | ENFL-24W1201-02B | |
AC85-265V / Meanwell Driver | 24W | 3000K/ 4000K/ 6000K | 6°/15°/25°/45°/60° | 2160LM |
| 13 | ENFL-36W1201-02A | |
24VDC / Meanwell Driver | 36W | 3000K/ 4000K/ 6000K | 6°/15°/25°/45°/60° | 3240LM |
| 14 | ENFL-36W1201-02B | |
AC85-265V / Meanwell Driver | 36W | 3000K/ 4000K/ 6000K | 6°/15°/25°/45°/60° | 3240LM |

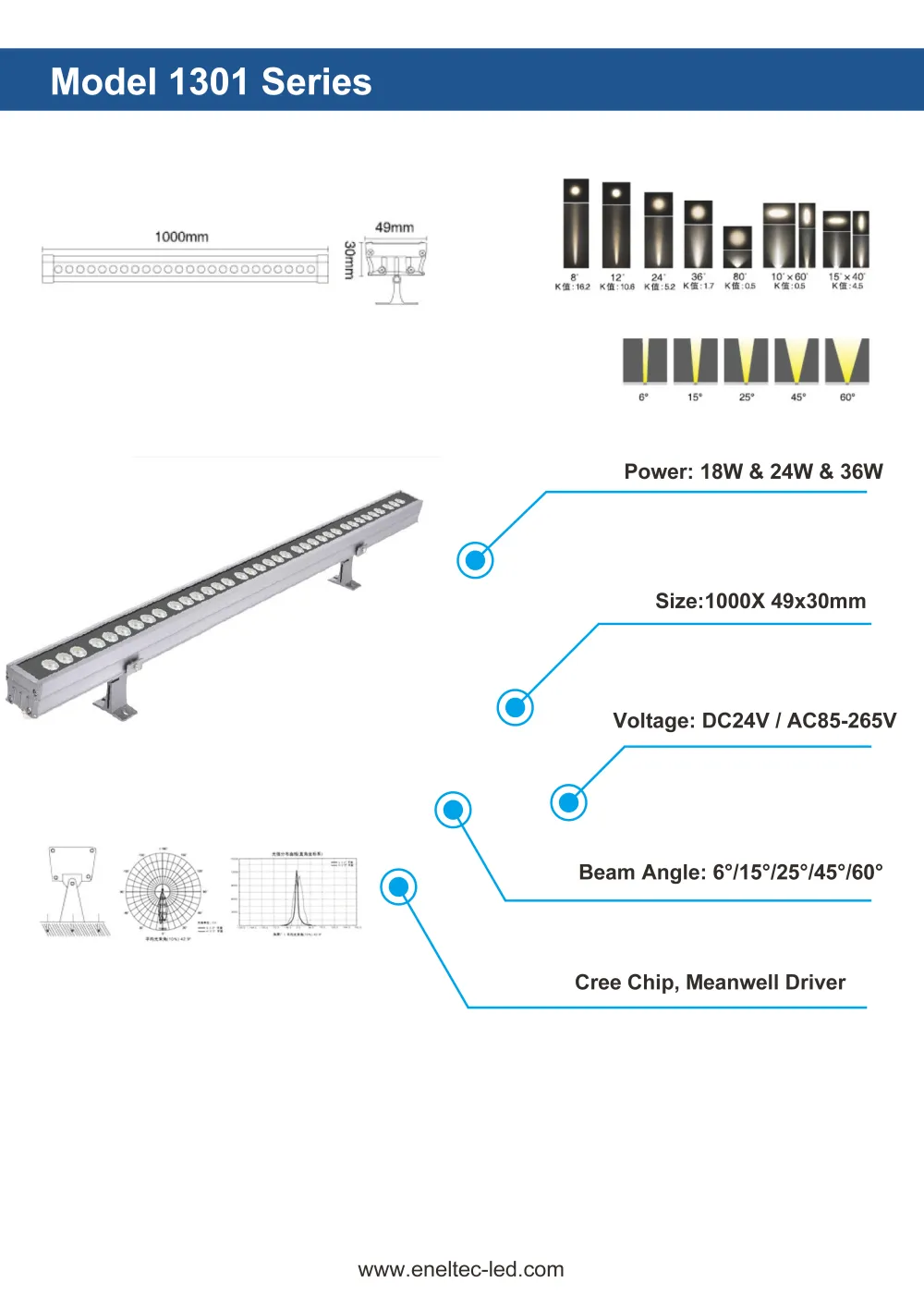

| 15 | ENFL-18W1301-02A |  |
24VDC / Meanwell Driver | 18W | 3000K/ 4000K/ 6000K | 6°/15°/25°/45°/60° | 1620LM |
| 16 | ENFL-18W1301-02B | |
AC85-265V / Meanwell Driver | 18W | 3000K/ 4000K/ 6000K | 6°/15°/25°/45°/60° | 1620LM |
| 17 | ENFL-24W1301-02A | |
24VDC / Meanwell Driver | 24W | 3000K/ 4000K/ 6000K | 6°/15°/25°/45°/60° | 2160LM |
| 18 | ENFL-24W1301-02B | |
AC85-265V / Meanwell Driver | 24W | 3000K/ 4000K/ 6000K | 6°/15°/25°/45°/60° | 2160LM |
| 19 | ENFL-36W1301-02A | |
24VDC / Meanwell Driver | 36W | 3000K/ 4000K/ 6000K | 6°/15°/25°/45°/60° | 3240LM |
| 20 | ENFL-36W1301-02B | |
AC85-265V / Meanwell Driver | 36W | 3000K/ 4000K/ 6000K | 6°/15°/25°/45°/60° | 3240LM |
DATA download:
