Integrated LED High Bay Lights

Integrated LED High Bay Lights
Integrated LED High Bay Lights
Integrated LED High Bay Lights

Industrial MeanWell driver Bridgelux 100Watt-500Watt Integrated led high bay light with 5 years warranty

Power: 100-500W

Voltage: 85-265VAC

Lumens: 12000-60000lm

Color: 3000K/4000K/5000K/6000K

Beam Angle: 25°/45°/60°/90°/100°

Warranty: 60 Months

Need more discount? Contact us now!

Product Overview:

Industrial MeanWell driver Bridgelux 100Watt-500Watt Integrated led high bay light with 3 years warranty

Integrated LED High Bay Lights have 13 flexible positions, which makes the project angle can be adjusted within 216°and MeanWell driver ensures the high bay lifespan. Our new led high bay lights are widely used in lighting engineering, square, golf courses, ships, airport and so on.Integrated led high bay lights have very high power,the largest is more than 500 watt!

If you need more information about Integrated LED High Bay Lights,you can click "DATA download" to download product specification for free.

Integrated LED High Bay Lights

Advantages of integrated LED high bay light:

1). The most powerful LED light ,replacing 1,000W MH/HPS lamps.

2). Universal voltage:100-277V, 347-480V .

3). High quality CREE chips.

4). Mean Well UL/cUL driver.

5). Excellent heat sink with Copper heat pipe .

6). 216°rotatable mounting bracket .

7). High reflective rate of 92% .

8). E-PTFE waterproof breathable membrane.

9). Suitable for both Indoor and outdoor uses.

Integrated LED High Bay Lights

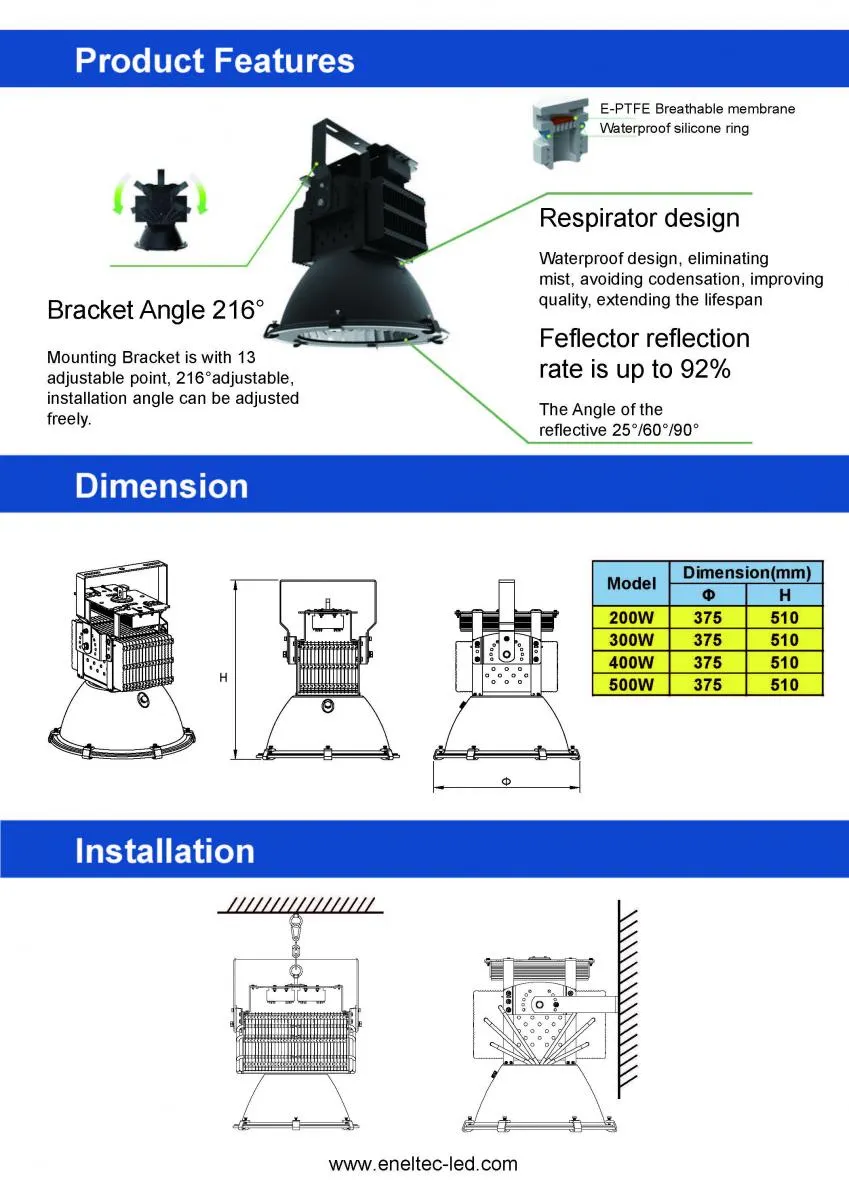

 Integrated LED High Bay Lights Installation Manuel:

1. Install reflector on the heat sink, wrest fixed screws very tightly.

2. Wrest hanger into top cap, wrest lock screw very tightly3. Hang the lamp on the installation site,and screw down the non skid lock.

4. Hang chaining of steel wire on another installation device.

5. Connect Live Wire/Null Wire/Ground Wire to electric cable properly and switch on.

Integrated LED High Bay Lights

Integrated LED High Bay Lights Attentions:

1.Only professional electrician can install the lamp, please check the lamp verycarefully before installation.

2.Please install the lamp follow up the installation procedure, make sure the screwhas been wrested very tightly, the wires have been connected properly.Pleaseoperate according to Product Instructions enclosed.

Integrated LED High Bay Lights Application:

Integrated LED High Bay Lights Application Integrated LED High Bay Lights Application

 Integrated LED High Bay Lights Widely used in the hotel, meeting room, offices , hospital , schools , factories , commercial lighting , shopping malls, supermarkets, kitchen, diaplay, backlight and so on.

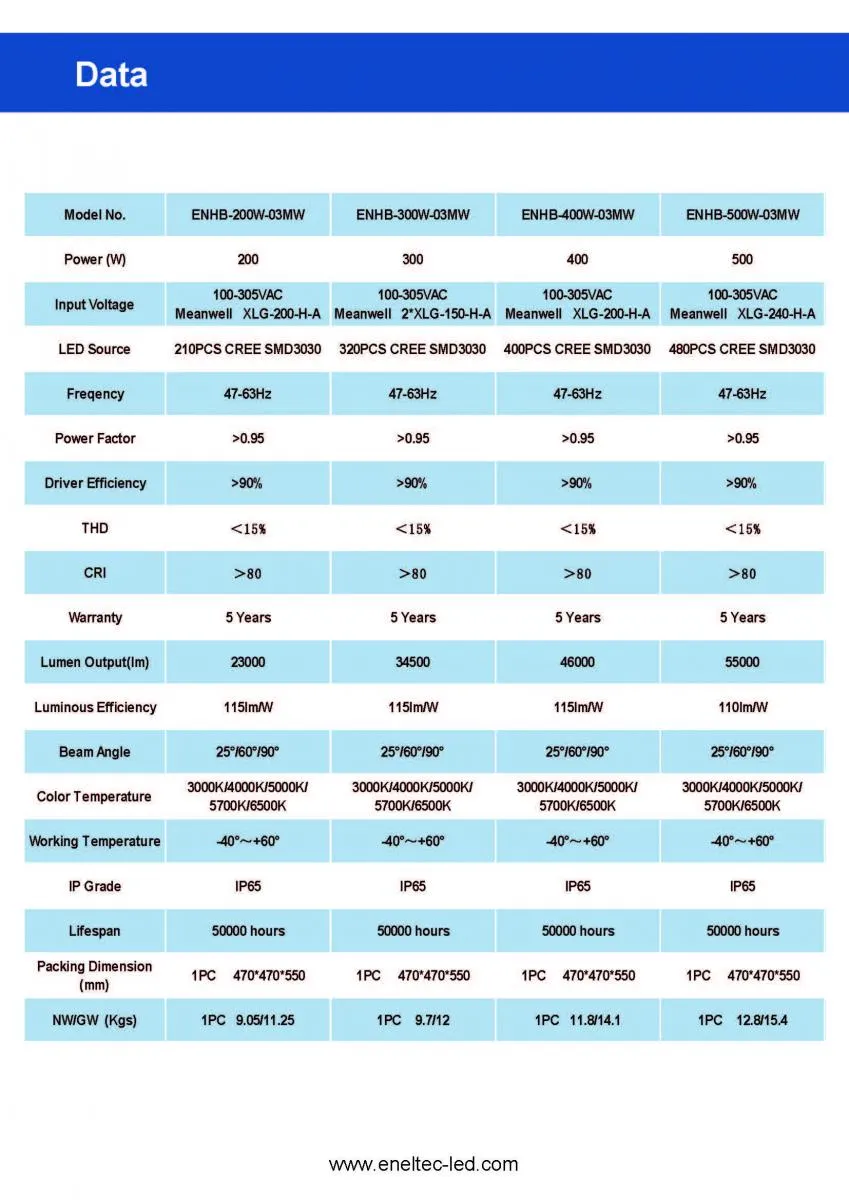

Specifications:
No. Pictures Model No. Power
(W)
Lumen
(LM)
Beam
Angle
Input
Voltage
1  Integrated LED High Bay Lights ENHB-100W-03CE 100 12000 25°/45°/60°/
90°/100°
85-265VAC
2  Integrated LED High Bay Lights ENHB-100W-03MW 100 12000 25°/45°/60°/
90°/100°
85-265VAC
3  Integrated LED High Bay Lights ENHB-150W-03CE 150 18000 25°/45°/60°/
90°/100°
85-265VAC
4  Integrated LED High Bay Lights ENHB-150W-03MW 150 18000 25°/45°/60°/
90°/100°
85-265VAC
5  Integrated LED High Bay Lights ENHB-200W-03CE 200 24000 25°/45°/60°/
90°/100°
85-265VAC
6  Integrated LED High Bay Lights ENHB-200W-03MW 200 24000 25°/45°/60°/
90°/100°
85-265VAC
7  Integrated LED High Bay Lights ENHB-300W-03CE 300 36000 25°/45°/60°/
90°/100°
85-265VAC
8  Integrated LED High Bay Lights ENHB-300W-03MW 300 36000 25°/45°/60°/
90°/100°
85-265VAC
9  Integrated LED High Bay Lights ENHB-400W-03CE 400 48000 25°/45°/60°/
90°/100°
85-265VAC
10  Integrated LED High Bay Lights ENHB-400W-03MW 400 48000 25°/45°/60°/
90°/100°
85-265VAC
11  Integrated LED High Bay Lights ENHB-500W-03CE 500 60000 25°/45°/60°/
90°/100°
85-265VAC
12  Integrated LED High Bay Lights ENHB-500W-03MW 500 60000 25°/45°/60°/
90°/100°
85-265VAC
