Power: 20-240W
Voltage: 100-277VAC
Lumens: 3300-38400lm
Color: 3000K/4000K/5000K/5700K
Warranty: 60 Months

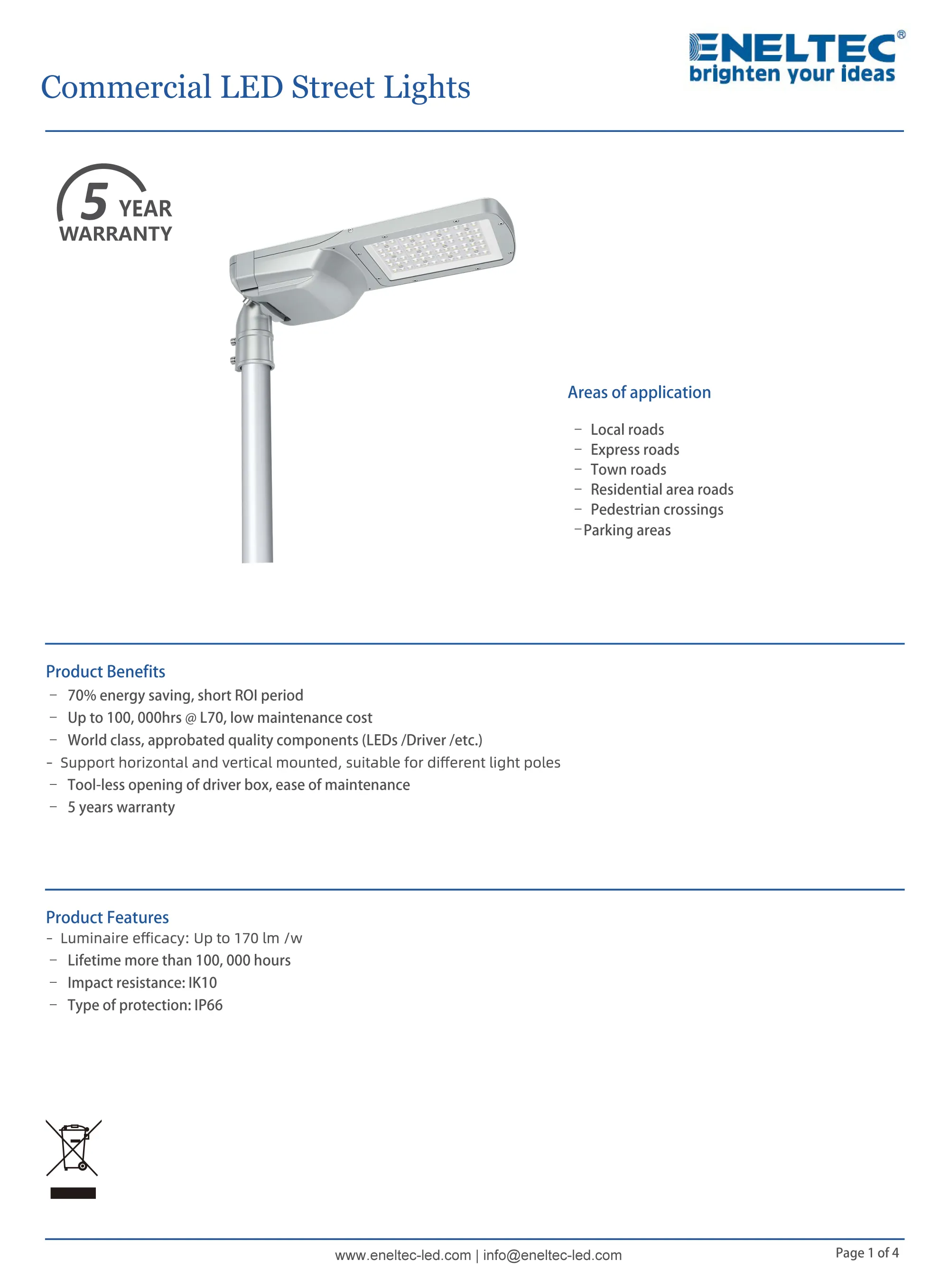

Product Overview:
ENELTEC Commercial LED Street Lights, luminaire efficacy up to 170 lm/w, impact resistance IK10, type of protection IP66, tempered glass

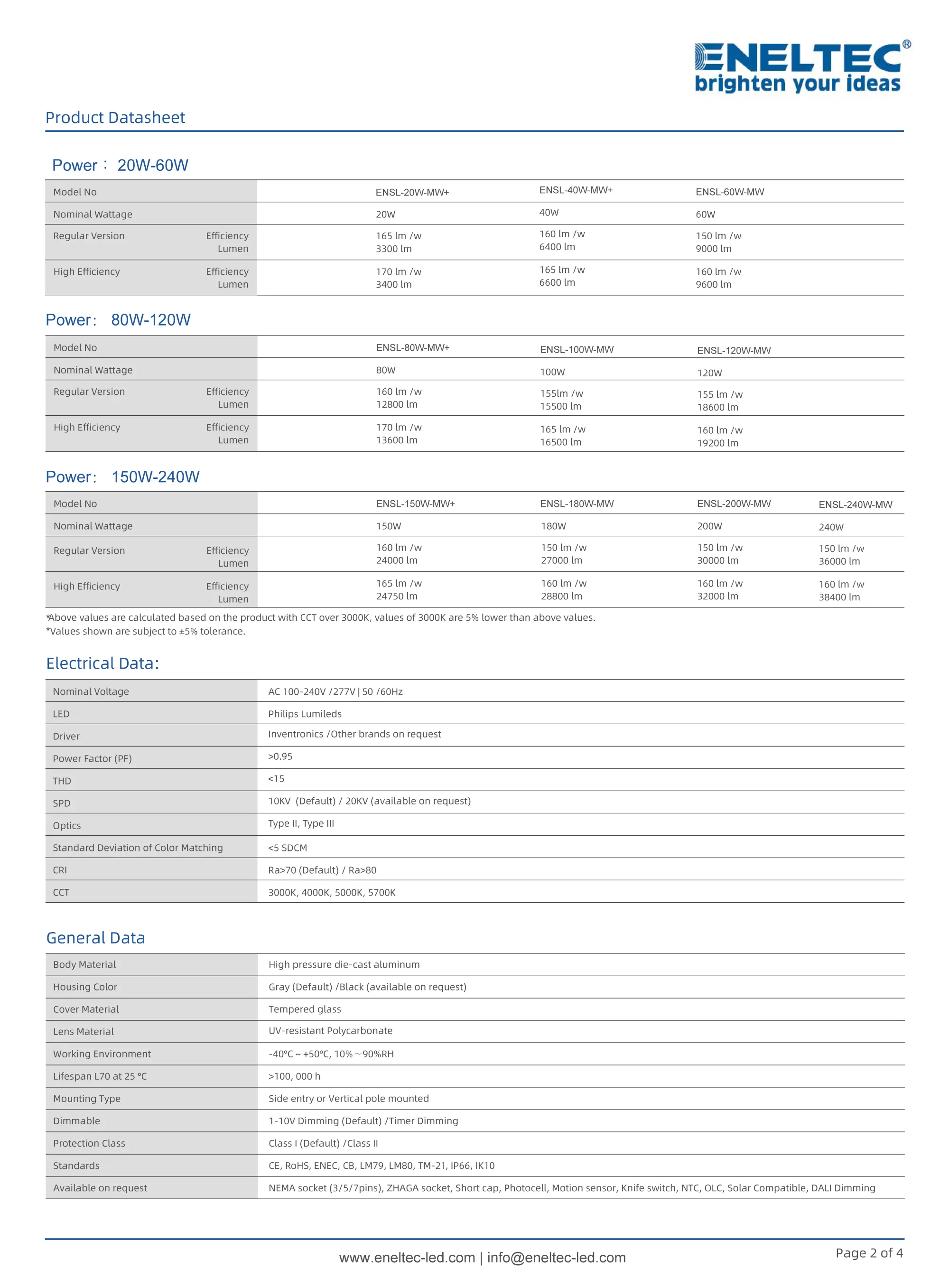

Specifications:
| No. | Model No. |
Picture | Input Voltage |
Power | Chip | Driver | Dimming Function |
LM |
| 1 | ENSL-20W-03MW+ |  |
AC 100-240V / 277V | 20W | Philips Lumileds 3030 2D 165lm/W | MEANWELL XLG-25A | / | 3300 |
| 2 | ENSL-20W-03DI+ | |
AC 100-240V / 277V | 20W | Philips Lumileds 3030 2D 165lm/W | MEANWELL XLG-25AB | 0-10V/PWM / resistance |
3300 |
| 3 | ENSL-20W-03DA+ | |
AC 100-240V / 277V | 20W | Philips Lumileds 3030 2D 165lm/W | InventronicsEBS DALI | DALI | 3300 |
| 4 | ENSL-20W-05MW+ | |
AC 100-240V / 277V | 20W | Philips Lumileds 5050 170lm/W | MEANWELL XLG-25A | / | 3400 |
| 5 | ENSL-20W-05DI+ | |
AC 100-240V / 277V | 20W | Philips Lumileds 5050 170lm/W | MEANWELL XLG-25AB | 0-10V/PWM / resistance |
3400 |
| 6 | ENSL-20W-05DA+ | |
AC 100-240V / 277V | 20W | Philips Lumileds 5050 170lm/W | InventronicsEBS DALI | DALI | 3400 |
| 7 | ENSL-40W-03MW+ | |
AC 100-240V / 277V | 40W | Philips Lumileds 3030 2D 160lm/W | MEANWELL XLG-50A | / | 6400 |
| 8 | ENSL-40W-03DI+ | |
AC 100-240V / 277V | 40W | Philips Lumileds 3030 2D 160lm/W | MEANWELL XLG-50AB | 0-10V/PWM / resistance |
6400 |
| 9 | ENSL-40W-03DA+ | |
AC 100-240V / 277V | 40W | Philips Lumileds 3030 2D 160lm/W | InventronicsEBS DALI | DALI | 6400 |
| 10 | ENSL-40W-05MW+ | |
AC 100-240V / 277V | 40W | Philips Lumileds 5050 165lm/W | MEANWELL XLG-50A | / | 6600 |
| 11 | ENSL-40W-05DI+ | |
AC 100-240V / 277V | 40W | Philips Lumileds 5050 165lm/W | MEANWELL XLG-50AB | 0-10V/PWM / resistance |
6600 |
| 12 | ENSL-40W-05DA+ | |
AC 100-240V / 277V | 40W | Philips Lumileds 5050 165lm/W | InventronicsEBS DALI | DALI | 6600 |
| 13 | ENSL-60W-03MW | |
AC 100-240V / 277V | 60W | Philips Lumileds 3030 2D 150lm/W | MEANWELL XLG-75A | / | 9000 |
| 14 | ENSL-60W-03DI | |
AC 100-240V / 277V | 60W | Philips Lumileds 3030 2D 150lm/W | MEANWELL XLG-75AB | 0-10V/PWM / resistance |
9000 |
| 15 | ENSL-60W-03DA | |
AC 100-240V / 277V | 60W | Philips Lumileds 3030 2D 150lm/W | InventronicsEBS DALI | DALI | 9000 |
| 16 | ENSL-60W-05MW | |
AC 100-240V / 277V | 60W | Philips Lumileds 5050 160lm/W | MEANWELL XLG-75A | / | 9600 |
| 17 | ENSL-60W-05DI | |
AC 100-240V / 277V | 60W | Philips Lumileds 5050 160lm/W | MEANWELL XLG-75AB | 0-10V/PWM / resistance |
9600 |
| 18 | ENSL-60W-05DA | |
AC 100-240V / 277V | 60W | Philips Lumileds 5050 160lm/W | InventronicsEBS DALI | DALI | 9600 |
| 19 | ENSL-80W-03MW+ | |
AC 100-240V / 277V | 80W | Philips Lumileds 3030 2D 160lm/W | MEANWELL XLG-75A | / | 12800 |
| 20 | ENSL-80W-03DI+ | |
AC 100-240V / 277V | 80W | Philips Lumileds 3030 2D 160lm/W | MEANWELL XLG-75AB | 0-10V/PWM / resistance |
12800 |
| 21 | ENSL-80W-03DA+ | |
AC 100-240V / 277V | 80W | Philips Lumileds 3030 2D 160lm/W | InventronicsEBS DALI | DALI | 12800 |
| 22 | ENSL-80W-05MW+ | |
AC 100-240V / 277V | 80W | Philips Lumileds 5050 170lm/W | MEANWELL XLG-75A | / | 13600 |
| 23 | ENSL-80W-05DI+ | |
AC 100-240V / 277V | 80W | Philips Lumileds 5050 170lm/W | MEANWELL XLG-75AB | 0-10V/PWM / resistance |
13600 |
| 24 | ENSL-80W-05DA+ | |
AC 100-240V / 277V | 80W | Philips Lumileds 5050 170lm/W | InventronicsEBS DALI | DALI | 13600 |
| 25 | ENSL-100W-03MW | |
AC 100-240V / 277V | 100W | Philips Lumileds 3030 2D 155lm/W | MEANWELL XLG-100A | / | 15500 |
| 26 | ENSL-100W-03DI | |
AC 100-240V / 277V | 100W | Philips Lumileds 3030 2D 155lm/W | MEANWELL XLG-100AB | 0-10V/PWM / resistance |
15500 |
| 27 | ENSL-100W-03DA | |
AC 100-240V / 277V | 100W | Philips Lumileds 3030 2D 155lm/W | InventronicsEBS DALI | DALI | 15500 |
| 28 | ENSL-100W-05MW | |
AC 100-240V / 277V | 100W | Philips Lumileds 5050 165lm/W | MEANWELL XLG-100A | / | 16500 |
| 29 | ENSL-100W-05DI | |
AC 100-240V / 277V | 100W | Philips Lumileds 5050 165lm/W | MEANWELL XLG-100AB | 0-10V/PWM / resistance |
16500 |
| 30 | ENSL-100W-05DA | |
AC 100-240V / 277V | 100W | Philips Lumileds 5050 165lm/W | InventronicsEBS DALI | DALI | 16500 |
| 31 | ENSL-120W-03MW | |
AC 100-240V / 277V | 120W | Philips Lumileds 3030 2D 155lm/W | MEANWELL XLG-150A | / | 18600 |
| 32 | ENSL-120W-03DI | |
AC 100-240V / 277V | 120W | Philips Lumileds 3030 2D 155lm/W | MEANWELL XLG-150AB | 0-10V/PWM / resistance |
18600 |
| 33 | ENSL-120W-03DA | |
AC 100-240V / 277V | 120W | Philips Lumileds 3030 2D 155lm/W | InventronicsEBS DALI | DALI | 18600 |
| 34 | ENSL-120W-05MW | |
AC 100-240V / 277V | 120W | Philips Lumileds 5050 160lm/W | MEANWELL XLG-150A | / | 19200 |
| 35 | ENSL-120W-05DI | |
AC 100-240V / 277V | 120W | Philips Lumileds 5050 160lm/W | MEANWELL XLG-150AB | 0-10V/PWM / resistance |
19200 |
| 36 | ENSL-120W-05DA | |
AC 100-240V / 277V | 120W | Philips Lumileds 5050 160lm/W | InventronicsEBS DALI | DALI | 19200 |
| 37 | ENSL-150W-03MW+ | |
AC 100-240V / 277V | 150W | Philips Lumileds 3030 2D 160lm/W | MEANWELL XLG-150A | / | 24000 |
| 38 | ENSL-150W-03DI+ | |
AC 100-240V / 277V | 150W | Philips Lumileds 3030 2D 160lm/W | MEANWELL XLG-150AB | 0-10V/PWM / resistance |
24000 |
| 39 | ENSL-150W-05MW+ | |
AC 100-240V / 277V | 150W | Philips Lumileds 5050 165lm/W | MEANWELL XLG-150A | / | 24750 |
| 40 | ENSL-150W-05DI+ | |
AC 100-240V / 277V | 150W | Philips Lumileds 5050 165lm/W | MEANWELL XLG-150AB | 0-10V/PWM / resistance |
24750 |
| 41 | ENSL-180W-03MW | |
AC 100-240V / 277V | 180W | Philips Lumileds 3030 2D 150lm/W | MEANWELL XLG-200A | / | 27000 |
| 42 | ENSL-180W-03DI | |
AC 100-240V / 277V | 180W | Philips Lumileds 3030 2D 150lm/W | MEANWELL XLG-200AB | 0-10V/PWM / resistance |
27000 |
| 43 | ENSL-180W-05MW | |
AC 100-240V / 277V | 180W | Philips Lumileds 5050 160lm/W | MEANWELL XLG-200A | / | 28800 |
| 44 | ENSL-180W-05DI | |
AC 100-240V / 277V | 180W | Philips Lumileds 5050 160lm/W | MEANWELL XLG-200AB | 0-10V/PWM / resistance |
28800 |
| 45 | ENSL-200W-03MW | |
AC 100-240V / 277V | 200W | Philips Lumileds 3030 2D 150lm/W | MEANWELL XLG-200A | / | 30000 |
| 46 | ENSL-200W-03DI | |
AC 100-240V / 277V | 200W | Philips Lumileds 3030 2D 150lm/W | MEANWELL XLG-200AB | 0-10V/PWM / resistance |
30000 |
| 47 | ENSL-200W-05MW | |
AC 100-240V / 277V | 200W | Philips Lumileds 5050 160lm/W | MEANWELL XLG-200A | / | 32000 |
| 48 | ENSL-200W-05DI | |
AC 100-240V / 277V | 200W | Philips Lumileds 5050 160lm/W | MEANWELL XLG-200AB | 0-10V/PWM / resistance |
32000 |
| 49 | ENSL-240W-03MW | |
AC 100-240V / 277V | 240W | Philips Lumileds 3030 2D 150lm/W | MEANWELL XLG-240A | / | 36000 |
| 50 | ENSL-240W-03DI | |
AC 100-240V / 277V | 240W | Philips Lumileds 3030 2D 150lm/W | MEANWELL XLG-240AB | 0-10V/PWM / resistance |
36000 |
| 51 | ENSL-240W-05MW | |
AC 100-240V / 277V | 240W | Philips Lumileds 5050 160lm/W | MEANWELL XLG-240A | / | 38400 |
| 52 | ENSL-240W-05DI | |
AC 100-240V / 277V | 240W | Philips Lumileds 5050 160lm/W | MEANWELL XLG-240AB | 0-10V/PWM / resistance |
38400 |
