New ENELTEC LED street light CREE SMD3030 and high reliable MEAN WELL LED driver.
Power: 30-150W
Voltage: 85-265VAC
Lumens: 3300-16500lm
Color: 3000K/4000K/5000K/6500K
Beam Angle: 150°H x 75°V
Warranty: 24 Months
Need more discount? Contact us now!
Product Overview:
30W - 150W Modular LED Street Lights With CREE SMD3030 and high reliable MEAN WELL LED driver
If you need more information about Eneltec LED Street,you can click "DATA download" to download product specification for free.

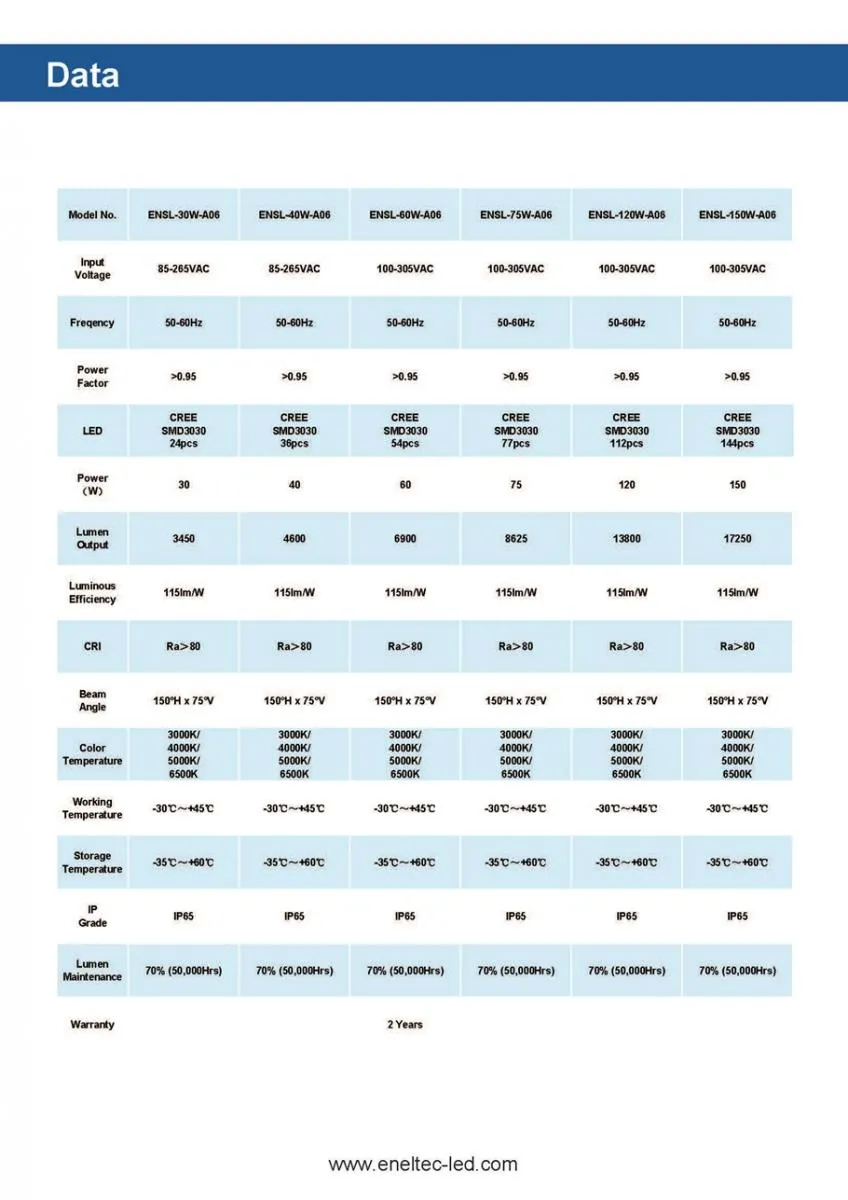

30W - 150W Modular LED Street Lights Specification:
| Model No. | ENSL-30W-A06 | ENSL-40W-A06 | ENSL-60W-A06 | ENSL-75W-A06 | ENSL-120W-A06 | ENSL-150W-A06 |
| Input Voltage |
85-265VAC | 85-265VAC | 100-305VAC | 100-305VAC | 100-305VAC | 100-305VAC |
| Freqency | 50-60Hz | 50-60Hz | 50-60Hz | 50-60Hz | 50-60Hz | 50-60Hz |
| Power Factor |
>0.95 | >0.95 | >0.95 | >0.95 | >0.95 | >0.95 |
| LED | CREE SMD3030 | CREE SMD3030 | CREE SMD3030 | CREE SMD3030 | CREE SMD3030 | CREE SMD3030 |
| Power （W） |
30 | 40 | 60 | 75 | 120 | 150 |
| Lumen Output |
3450 | 4600 | 6900 | 8625 | 13800 | 17250 |
| Luminous Efficiency | 115lm/W | 115lm/W | 115lm/W | 115lm/W | 115lm/W | 1150lm/W |
| CRI | Ra＞80 | Ra＞80 | Ra＞80 | Ra＞80 | Ra＞80 | Ra＞80 |
| Beam Angle |
150°H x 75°V | 150°H x 75°V | 150°H x 75°V | 150°H x 75°V | 150°H x 75°V | 150°H x 75°V |
| Color Temperature | 3000K/ 4000K/ 5000K/ 6500K |
3000K/ 4000K/ 5000K/ 6500K |
3000K/ 4000K/ 5000K/ 6500K |
3000K/ 4000K/ 5000K/ 6500K |
3000K/ 4000K/ 5000K/ 6500K |
3000K/ 4000K/ 5000K/ 6500K |
| Working Temperature | -30℃～+45℃ | -30℃～+45℃ | -30℃～+45℃ | -30℃～+45℃ | -30℃～+45℃ | -30℃～+45℃ |
| Storage Temperature | -35℃～+60℃ | -35℃～+60℃ | -35℃～+60℃ | -35℃～+60℃ | -35℃～+60℃ | -35℃～+60℃ |
| IP Grade |
IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
| Lumen Maintenance | 70% (50,000Hrs) | 70% (50,000Hrs) | 70% (50,000Hrs) | 70% (50,000Hrs) | 70% (50,000Hrs) | 70% (50,000Hrs) |
| Warranty | 2 Years | |||||
50W - 300W Modular LED Street Lights Dimension:
Specifications:
| No. | Picture | Model No. |
Input Voltage | Power | Color | Beam Angel |
Luminous |
| 1 |  |
ENSL-30W-A06 | 85-265VAC | 30W | 3000K/ 4000K/ 5000K 6500K |
150°H x 75°V | 3450 |
| 2 |  |
ENSL-40W-A06 | 85-265VAC | 40W | 3000K/ 4000K/ 5000K 6500K |
150°H x 75°V | 4600 |
| 3 |  |
ENSL-60W-A06 | 100-305VAC | 60W | 3000K/ 4000K/ 5000K 6500K |
150°H x 75°V | 6900 |
| 4 |  |
ENSL-75W-A06 | 100-305VAC | 75W | 3000K/ 4000K/ 5000K 6500K |
150°H x 75°V | 8625 |
| 5 |  |
ENSL-120W-A06 | 100-305VAC | 120W | 3000K/ 4000K/ 5000K 6500K |
150°H x 75°V | 13800 |
| 6 |  |
ENSL-150W-A06 | 100-305VAC | 150W | 3000K/ 4000K/ 5000K 6500K |
150°H x 75°V | 17250 |
