Power: 20-130W
Voltage: 12VDC/24VDC/100-277VAC
Lumens: 2920-17680lm
Color: 3000K/4000K/5000K/5700K
Warranty: 60 Months
ENELTEC TUV Listed LED Mini Street Lights, more efficient PHILIPS Lumileds3030 LED luminous source and high reliable MEAN WELL XLG series LED driver, low cost, high performance.

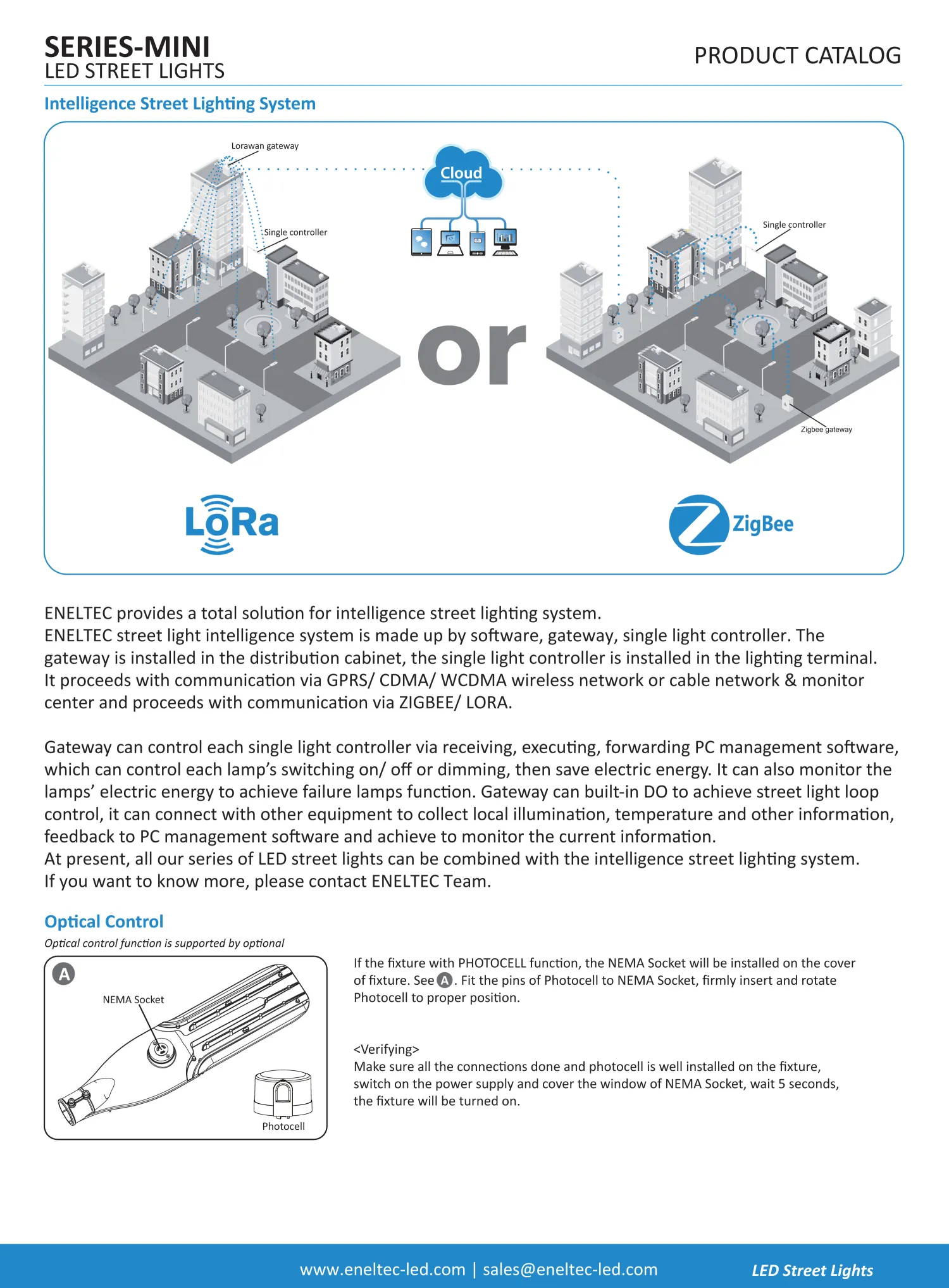

What is LoRa/zigbee LED street light?
First, a LoRa-enabled sensor is embedded in a LED street lamp. These sensors have the ability to control the lamp’s functions. Each of the sensors connects the lamp to a LoRa-based gateway. Each gateway handles the messages and data from all nearby lamps. Other smart city solutions, such as LoRa-enabled parking sensors, can connect to the same gateway. Once a message is sent to the gateway, it is forwarded on to a network server where the data can be analyzed. The server controls lighting function remotely and can send maintenance alerts upon detection of a burnt-out bulb or other problems.
The Benefits of LoRa Smart LED Street Light AND zigbee LED Street Light
Better control of the light usage means lights are only on when they are needed. This reduces energy costs. Lights can be programmed to be “context-aware.” This means lamps can stay on longer, or brighter, or during large events or in busy neighborhoods, or as needs require. Data from sensors can provide insight to improve maintenance efficiency and effectiveness. Interoperability with other smart city solutions means data can be analyzed to further increase city safety. For example, data from traffic sensors can show which streets are more accident-prone. Lighting time and/or brightness can be increased in these streets.

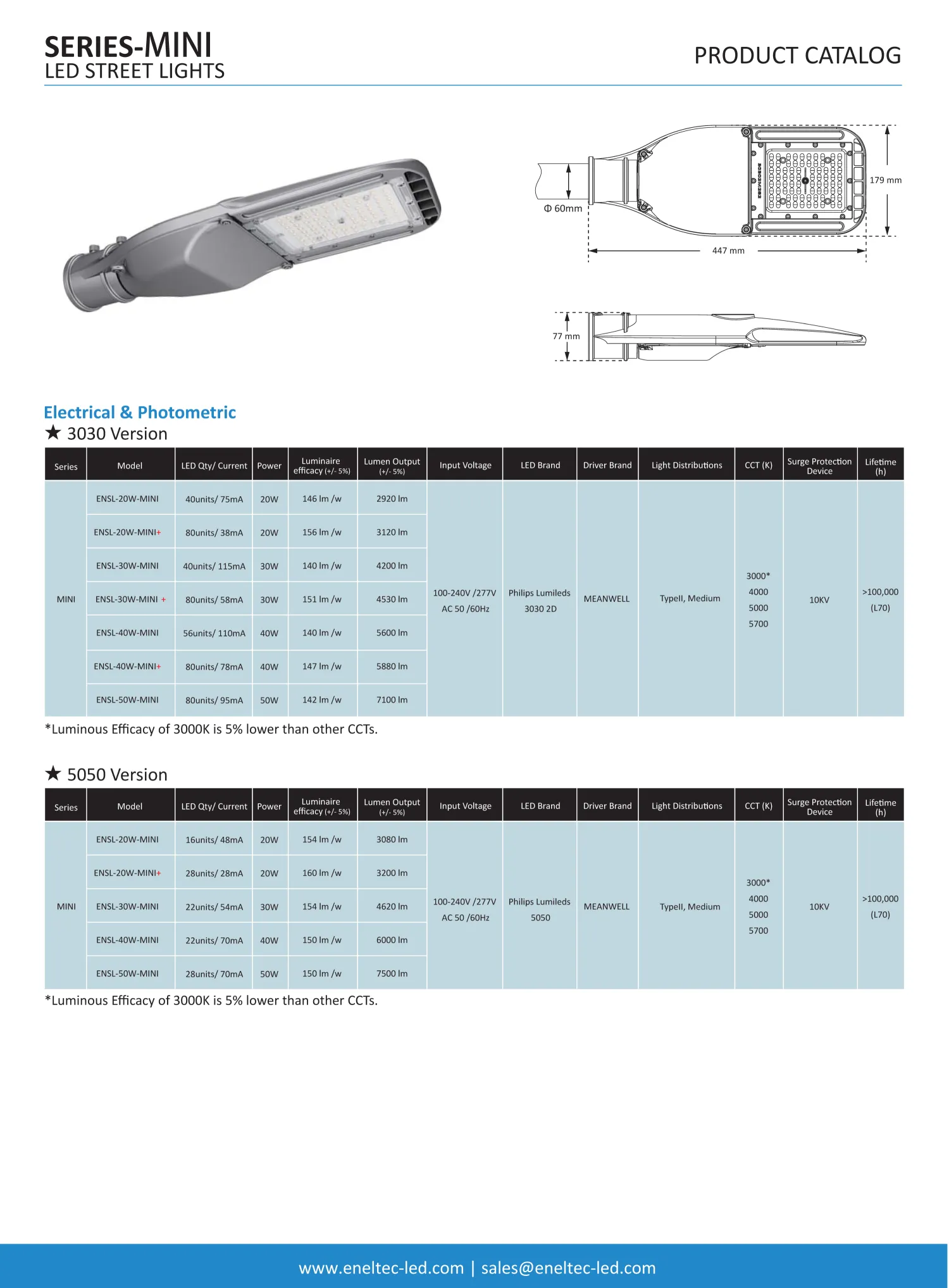

No. | Model No. |
Picture | Input Voltage | Power | Chip | Driver | Dimming Function |
LM |
1 | ENSL-20W-MINI1 | AC100-277V | 20W | Philips Lumileds 3030 2D 40pcs |
MEANWELL XLG-25A | / | 2920 | |
2 | ENSL-20W-MINI2 | AC100-277V | 20W | Philips Lumileds 3030 2D 40pcs |
MEANWELL XLG-25AB | 0-10V/PWM / resistance |
2920 | |
3 | ENSL-20W-MINI3 | 12VDC/ 24VDC | 20W | Philips Lumileds 3030 2D 40pcs |
EPEVER | / | 2920 | |
4 | ENSL-20W-MINI1+ | AC100-277V | 20W | Philips Lumileds 3030 2D 80pcs |
MEANWELL XLG-25A | / | 3120 | |
5 | ENSL-20W-MINI2+ | AC100-277V | 20W | Philips Lumileds 3030 2D 80pcs |
MEANWELL XLG-25AB | 0-10V/PWM / resistance |
3120 | |
6 | ENSL-30W-MINI1 | AC100-277V | 30W | Philips Lumileds 3030 2D 40pcs |
MEANWELL XLG-50A | / | 4200 | |
7 | ENSL-30W-MINI2 | AC100-277V | 30W | Philips Lumileds 3030 2D 40pcs |
MEANWELL XLG-50AB | 0-10V/PWM / resistance |
4200 | |
8 | ENSL-30W-MINI3 | 12VDC/ 24VDC | 30W | Philips Lumileds 3030 2D 40pcs |
EPEVER | / | 4200 | |
9 | ENSL-30W-MINI1+ | AC100-277V | 30W | Philips Lumileds 3030 2D 80pcs |
MEANWELL XLG-50A | / | 4530 | |
10 | ENSL-30W-MINI2+ | AC100-277V | 30W | Philips Lumileds 3030 2D 80pcs |
MEANWELL XLG-50AB | 0-10V/PWM / resistance |
4530 | |
11 | ENSL-40W-MINI1 | AC100-277V | 40W | Philips Lumileds 3030 2D 56pcs |
MEANWELL XLG-50A | / | 5600 | |
12 | ENSL-40W-MINI2 | AC100-277V | 40W | Philips Lumileds 3030 2D 56pcs |
MEANWELL XLG-50AB | 0-10V/PWM / resistance |
5600 | |
13 | ENSL-40W-MINI3 | 12VDC/ 24VDC | 40W | Philips Lumileds 3030 2D 56pcs |
EPEVER | / | 5600 | |
14 | ENSL-40W-MINI1+ | AC100-277V | 40W | Philips Lumileds 3030 2D 80pcs |
MEANWELL XLG-50A | / | 5880 | |
15 | ENSL-40W-MINI2+ | AC100-277V | 40W | Philips Lumileds 3030 2D 80pcs |
MEANWELL XLG-50AB | 0-10V/PWM / resistance |
5880 | |
16 | ENSL-50W-MINI1 | AC100-277V | 50W | Philips Lumileds 3030 2D 80pcs |
MEANWELL XLG-50A | / | 7100 | |
17 | ENSL-50W-MINI2 | AC100-277V | 50W | Philips Lumileds 3030 2D 80pcs |
MEANWELL XLG-50AB | 0-10V/PWM / resistance |
7100 | |
18 | ENSL-50W-MINI3 | 12VDC/ 24VDC | 50W | Philips Lumileds 3030 2D 80pcs |
EPEVER | / | 7100 | |
19 | ENSL-60W-MINI1 | AC100-277V | 60W | Philips Lumileds 3030 2D 80pcs |
MEANWELL XLG-75-H-A | / | 8400 | |
20 | ENSL-60W-MINI2 | AC100-277V | 60W | Philips Lumileds 3030 2D 80pcs |
MEANWELL XLG-75-H-AB | 0-10V/PWM / resistance |
8400 | |
21 | ENSL-60W-MINI3 | 24VDC | 60W | Philips Lumileds 3030 2D 80pcs |
EPEVER | / | 8400 | |
22 | ENSL-60W-MINI1+ | AC100-277V | 60W | Philips Lumileds 3030 2D 160pcs |
MEANWELL XLG-75-H-A | / | 9180 | |
23 | ENSL-60W-MINI2+ | AC100-277V | 60W | Philips Lumileds 3030 2D 160pcs |
MEANWELL XLG-75-H-AB | 0-10V/PWM / resistance |
9180 | |
24 | ENSL-70W-MINI1 | AC100-277V | 70W | Philips Lumileds 3030 2D 80pcs |
MEANWELL XLG-75-H-A | / | 9450 | |
25 | ENSL-70W-MINI2 | AC100-277V | 70W | Philips Lumileds 3030 2D 80pcs |
MEANWELL XLG-75-H-AB | 0-10V/PWM / resistance |
9450 | |
26 | ENSL-70W-MINI3 | 24VDC | 70W | Philips Lumileds 3030 2D 80pcs |
EPEVER | / | 9450 | |
27 | ENSL-70W-MINI1+ | AC100-277V | 70W | Philips Lumileds 3030 2D 160pcs |
MEANWELL XLG-75-H-A | / | 10710 | |
28 | ENSL-70W-MINI2+ | AC100-277V | 70W | Philips Lumileds 3030 2D 160pcs |
MEANWELL XLG-75-H-AB | 0-10V/PWM / resistance |
10710 | |
29 | ENSL-80W-MINI1 | AC100-277V | 80W | Philips Lumileds 3030 2D 112pcs |
MEANWELL XLG-100-H-A | / | 11520 | |
30 | ENSL-80W-MINI2 | AC100-277V | 80W | Philips Lumileds 3030 2D 112pcs |
MEANWELL XLG-100-H-AB | 0-10V/PWM / resistance |
11520 | |
31 | ENSL-80W-MINI3 | 24VDC | 80W | Philips Lumileds 3030 2D 112pcs |
EPEVER | / | 11520 | |
32 | ENSL-80W-MINI1+ | AC100-277V | 80W | Philips Lumileds 3030 2D 160pcs |
MEANWELL XLG-100-H-A | / | 12240 | |
33 | ENSL-80W-MINI2+ | AC100-277V | 80W | Philips Lumileds 3030 2D 160pcs |
MEANWELL XLG-100-H-AB | 0-10V/PWM / resistance |
12240 | |
34 | ENSL-90W-MINI1 | AC100-277V | 90W | Philips Lumileds 3030 2D 112pcs |
MEANWELL XLG-100-H-A | / | 12600 | |
35 | ENSL-90W-MINI2 | AC100-277V | 90W | Philips Lumileds 3030 2D 112pcs |
MEANWELL XLG-100-H-AB | 0-10V/PWM / resistance |
12600 | |
36 | ENSL-90W-MINI3 | 24VDC | 90W | Philips Lumileds 3030 2D 112pcs |
EPEVER | / | 12600 | |
37 | ENSL-90W-MINI1+ | AC100-277V | 90W | Philips Lumileds 3030 2D 160pcs |
MEANWELL XLG-100-H-A | / | 13500 | |
38 | ENSL-90W-MINI2+ | AC100-277V | 90W | Philips Lumileds 3030 2D 160pcs |
MEANWELL XLG-100-H-AB | 0-10V/PWM / resistance |
13500 | |
39 | ENSL-100W-MINI1 | AC100-277V | 100W | Philips Lumileds 3030 2D 112pcs |
MEANWELL XLG-100-H-A | / | 13700 | |
40 | ENSL-100W-MINI2 | AC100-277V | 100W | Philips Lumileds 3030 2D 112pcs |
MEANWELL XLG-100-H-AB | 0-10V/PWM / resistance |
13700 | |
41 | ENSL-100W-MINI3 | 24VDC | 100W | Philips Lumileds 3030 2D 112pcs |
EPEVER | / | 13700 | |
42 | ENSL-100W-MINI1+ | AC100-277V | 100W | Philips Lumileds 3030 2D 160pcs |
MEANWELL XLG-100-H-A | / | 14600 | |
43 | ENSL-100W-MINI2+ | AC100-277V | 100W | Philips Lumileds 3030 2D 160pcs |
MEANWELL XLG-100-H-AB | 0-10V/PWM / resistance |
14600 | |
44 | ENSL-110W-MINI1 | AC100-277V | 110W | Philips Lumileds 3030 2D 160pcs |
MEANWELL XLG-150-H-A | / | 15730 | |
45 | ENSL-110W-MINI2 | AC100-277V | 110W | Philips Lumileds 3030 2D 160pcs |
MEANWELL XLG-150-H-AB | 0-10V/PWM / resistance |
15730 | |
46 | ENSL-120W-MINI1 | AC100-277V | 120W | Philips Lumileds 3030 2D 160pcs |
MEANWELL XLG-150-H-A | / | 16800 | |
47 | ENSL-120W-MINI2 | AC100-277V | 120W | Philips Lumileds 3030 2D 160pcs |
MEANWELL XLG-150-H-AB | 0-10V/PWM / resistance |
16800 | |
48 | ENSL-130W-MINI1 | AC100-277V | 130W | Philips Lumileds 3030 2D 160pcs |
MEANWELL XLG-150-H-A | / | 17680 | |
49 | ENSL-130W-MINI2 | AC100-277V | 130W | Philips Lumileds 3030 2D 160pcs |
MEANWELL XLG-150-H-AB | 0-10V/PWM / resistance |
17680 |
