Power: 9watt-18Watt
Voltage: 175-265VAC/90-265VAC
Lumens: 700-1900lm
Color: 3000K / 4000K / 6500K
Beam Angle: 330°
Warranty: 36 Months
Need more discount? Contact us now!
Product Overview:

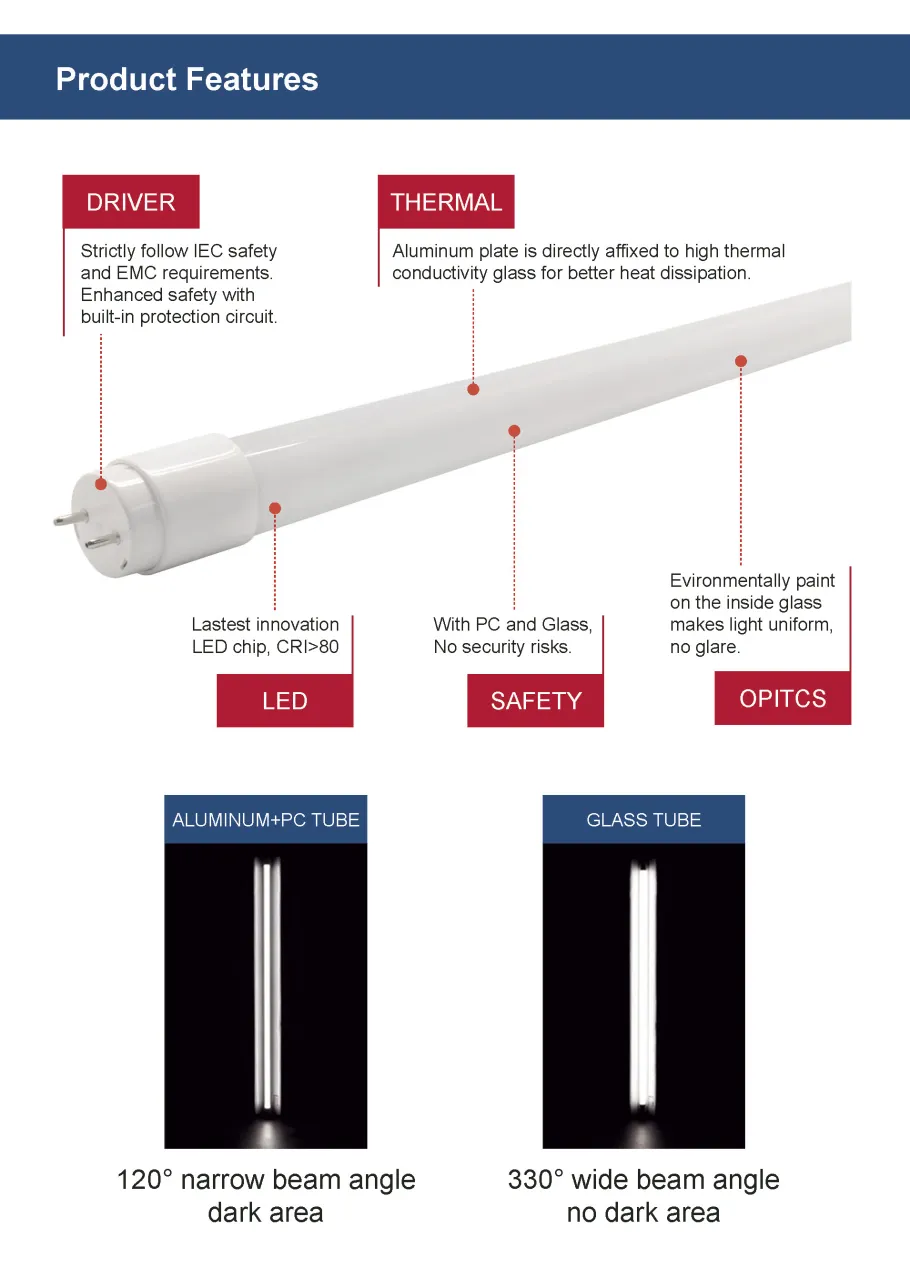

600mm 1200mm T8 Glass LED Tube Lights are using glass cover, which has 330° wide beam angle, no dark area with very cheap cost.
If you need more information about Eneltec LED Street,you can click "DATA download" to download product specification for free.
600mm 1200mm T8 Glass LED Tubes Specification:
| Model | ENLT-T8060-G01 | ENLT-T8120-G01 | ENLT-T8060-G02 | ENLT-T8120-G02 | ENLT-T8060-G03EMC | ENLT-T8120-G03EMC |
| Input Voltage | 175-265VAC | 175-265VAC | 90-265VAC | 90-265VAC | 90-265VAC | 90-265VAC |
| Socket | G13 | G13 | G13 | G13 | G13 | G13 |
| Power | 9 | 18 | 9 | 18 | 9 | 18 |
| PF | ﹥0.5 | ﹥0.5 | ﹥0.9 | ﹥0.9 | ﹥0.9 | ﹥0.9 |
| Beam Angle | 330° | 330° | 330° | 330° | 330° | 330° |
| Color | 3000K / 4000K / 6500K | |||||
| Lumen | 700 | 1400 | 800 | 1600 | 950 | 1900 |
| CRI | ≧70 | ≧70 | ≧80 | ≧80 | ≧80 | ≧80 |
| LED Chips | SANAN SMD2835 |
SANAN SMD2835 |
SANAN SMD2835 |
SANAN SMD2835 |
SANAN SMD2835 |
SANAN SMD2835 |
| LED Quantity | 42 | 88 | 42 | 92 | 42 | 92 |
| LED Driver | Non-Isolated Driver | Non-Isolated Driver | Isolated Driver | Isolated Driver | Isolated Driver | Isolated Driver |
| Warranty | 3 Years | 3 Years | 3 Years | 3 Years | 3 Years | 3 Years |
| Lifespan | >50,000 Hours | >50,000 Hours | >50,000 Hours | >50,000 Hours | >50,000 Hours | >50,000 Hours |
| Cover | Frosted Glass |
Frosted Glass |
Frosted Glass |
Frosted Glass |
Frosted Glass |
Frosted Glass |

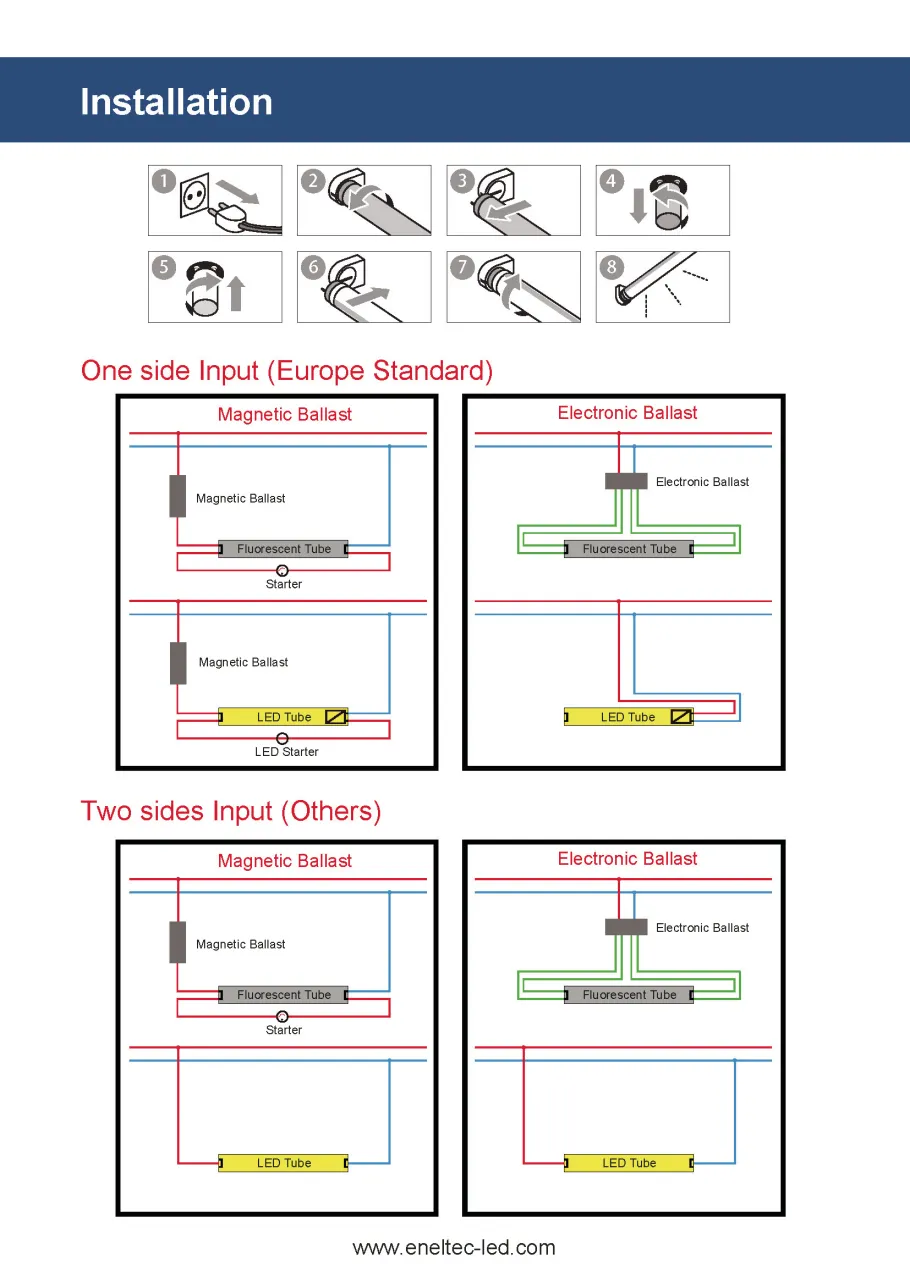

LED Tube Lighting Installation:
Specifications:
| No. | Picture | Model No. | Voltage | Lumen (lm) |
Watts (W) |
Beam Angle |
Color |
| 1 |  |
ENLT-T8060-G01 | 175-265VAC | 700 | 9 | 330° | 3000K/ 4000K/ 6500K |
| 2 | |
ENLT-T8120-G01 | 175-265VAC | 1400 | 18 | 330° | 3000K/ 4000K/ 6500K |
| 3 | |
ENLT-T8060-G02 | 90-265VAC | 800 | 9 | 330° | 3000K/ 4000K/ 6500K |
| 4 | |
ENLT-T8120-G02 | 90-265VAC | 1600 | 18 | 330° | 3000K/ 4000K/ 6500K |
| 5 | |
ENLT-T8060-G03EMC | 90-265VAC | 950 | 9 | 330° | 3000K/ 4000K/ 6500K |
| 6 | |
ENLT-T8120-G03EMC | 90-265VAC | 1900 | 18 | 330° | 3000K/ 4000K/ 6500K |
DATA download:
