Power: 50-600W

Voltage: 100-305VAC

Lumens: 6750-81000lm

Color: 3000K/4000K/5000K/5700K/6500K

Beam Angle: 30°/60°/90°

Warranty: 24 Months

Product Overview:

Modular LED Tunnel Lights featured with easy mounting and fiexible angle adjustment, removable U Shapebracket; built-in driver design. Wide input voltage from 85-265VAC, power from 50-300W, suitable for a variety of applications.

Modular LED Tunnel Lights

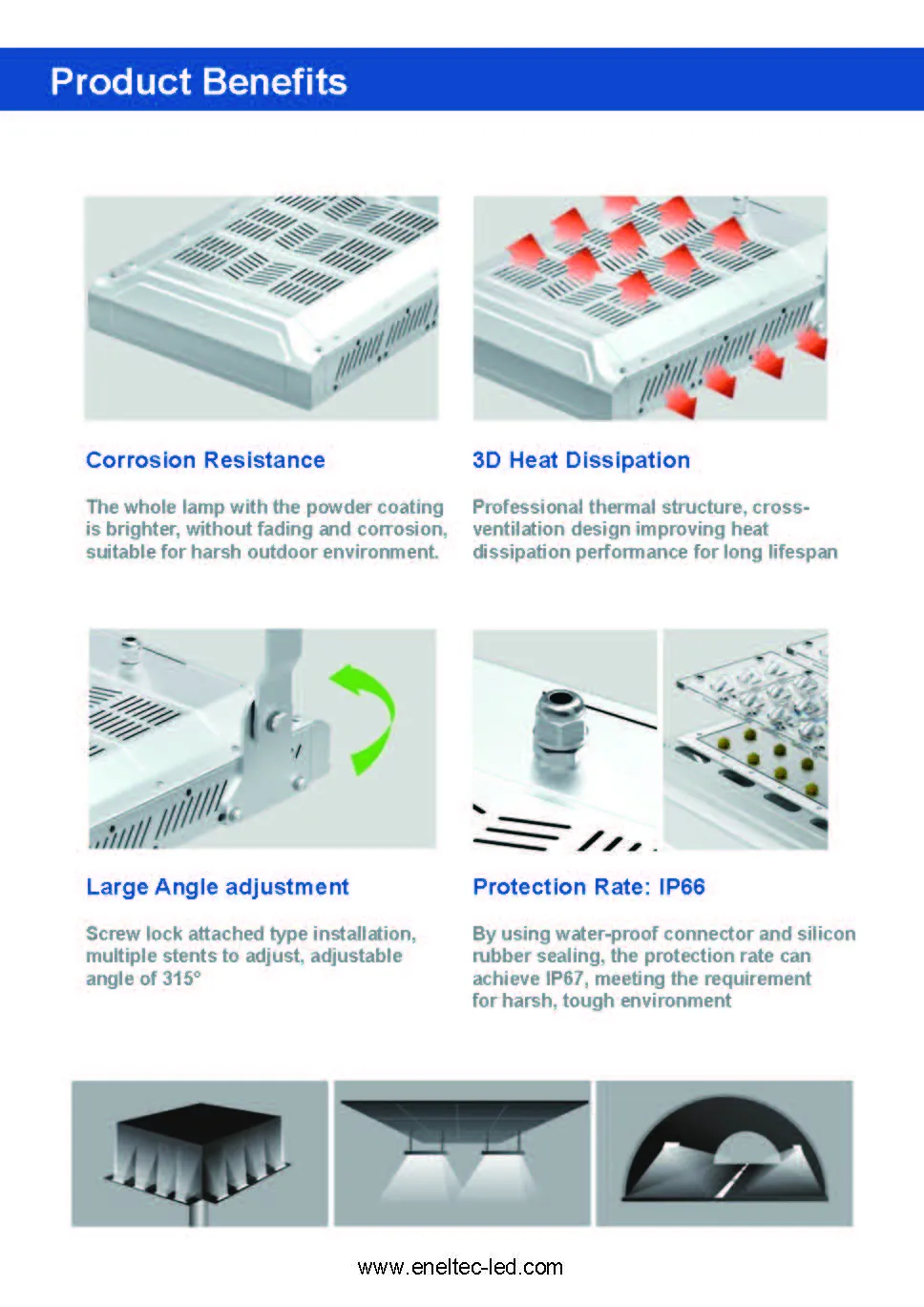

Modular LED Tunnel Lights Features:

Corrosion Resistance:The whole lamp with the powder coatingis brighter, without fading and corrosion,suitable for harsh outdoor environment.

3D Heat Dissipation:Professional thermal structure, crossventilationdesign improving heatdissipation performance for long lifespan.

Large Angle adjustment:Screw lock attached type installation,multiple stents to adjust, adjustableangle of 315°

Protection Rate: IP67:By using water-proof connector and siliconrubber sealing, the protection rate canachieve IP67, meeting the requirementfor harsh, tough environment.

Modular LED Tunnel Lights

Modular LED Tunnel Lights

Modular LED Tunnel Lights

Modular LED Tunnel Lights

Modular LED Tunnel Lights

Modular LED Tunnel Lights

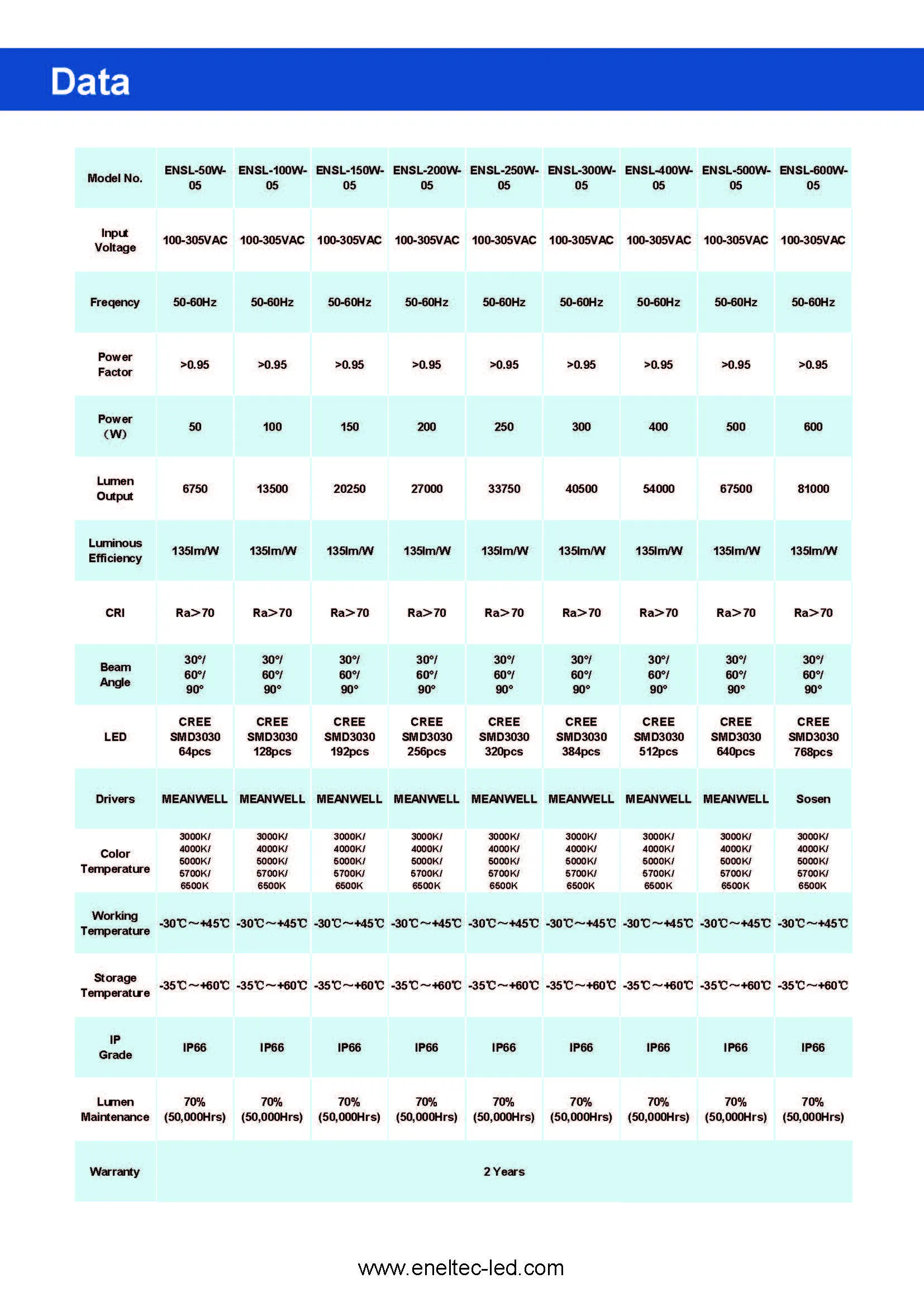

Specifications:
No. Model
No.
Picture Input
Voltage
Power LED Drivers LM Color Beam
Angel
1 ENTL-50W-05  Modular LED Tunnel Lights 100-305VAC 50W CREE
SMD3030
64pcs
MEANWELL 6750 3000K/
4000K/
5000K/
5700K/
6500K
30°/
60°/
90°
2 ENTL-100W-05  Modular LED Tunnel Lights 100-305VAC 100W CREE
SMD3030
128pcs
MEANWELL 13500 3000K/
4000K/
5000K/
5700K/
6500K
30°/
60°/
90°
3 ENTL-150W-05  Modular LED Tunnel Lights 100-305VAC 150W CREE
SMD3030
192pcs
MEANWELL 20250 3000K/
4000K/
5000K/
5700K/
6500K
30°/
60°/
90°
4 ENTL-200W-05  Modular LED Tunnel Lights 100-305VAC 200W CREE
SMD3030
256pcs
MEANWELL 27000 3000K/
4000K/
5000K/
5700K/
6500K
30°/
60°/
90°
5 ENTL-250W-05  Modular LED Tunnel Lights 100-305VAC 250W CREE
SMD3030
320pcs
MEANWELL 33750 3000K/
4000K/
5000K/
5700K/
6500K
30°/
60°/
90°
6 ENTL-300W-05  Modular LED Tunnel Lights 100-305VAC 300W CREE
SMD3030
384pcs
MEANWELL 40500 3000K/
4000K/
5000K/
5700K/
6500K
30°/
60°/
90°
7 ENTL-400W-05  Modular LED Tunnel Lights 100-305VAC 400W CREE
SMD3030
512pcs
MEANWELL 54000 3000K/
4000K/
5000K/
5700K/
6500K
30°/
60°/
90°
8 ENTL-500W-05  Modular LED Tunnel Lights 100-305VAC 500W CREE
SMD3030
640pcs
MEANWELL 67500 3000K/
4000K/
5000K/
5700K/
6500K
30°/
60°/
90°
9 ENTL-600W-05  Modular LED Tunnel Lights 100-305VAC 600W CREE
SMD3030
768pcs
Sosen 81000 3000K/
4000K/
5000K/
5700K/
6500K
30°/
60°/
90°
